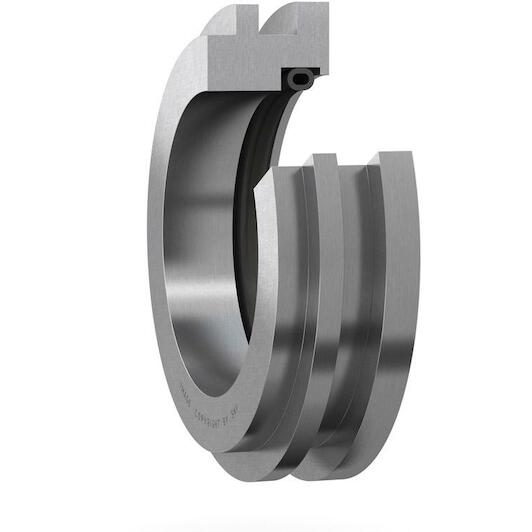

SKF TSN 507 S Labyrinth bearing housing seal

SKF
Supplier number: SKF TSN 507 S | EAN 7316570903140
Recommended Retail Price €235.76
116.60 tax incl.
€96.36 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/10/2026

  • Ordered before 20:00 - delivered as of 23/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€116.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 30 mm
  • Outer diameter: 52,5 mm
  • Width: 18 mm
  • Type of seal: Labyrinth seal

Product description

SNL housing seals are the first barrier against contamination. For applications where there are high speeds or extreme temperatures, SKF recommends using labyrinth seals, and for highly contaminated environments, SKF recommends the three-barrier solution. This cost-effective sealing solution can have a significant impact on bearing service life as contaminants have to pass through three barriers to reach the bearing.

  • Good protection from contamination
  • Keep the lubricant in the housing
  • Part of the three barrier solution
  • Cost-effective

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
30 mm
Outer diameter
52,5 mm
Width
18 mm
Type of seal
Labyrinth seal
Outer diameter
52.5
Material
Steel with silicone element
Shaft diameter
30
Housing groove diameter
54.5
Sealing type
Labyrinth
Accessory type
Housing seal
  • Brand SKF
  • EAN 7316570903140
  • Supplier number SKF TSN 507 S
