SKF TMMK 10-35 mounting and dismounting kit 10-35 mm

1,500.20 tax incl.

€1,239.83 excl. VAT (incl. all environmental contributions)

€1,500.20

On order: delivered from 20/05/2026

set

Ordered before 20:00 - delivered as of 20/05/2026
Free shipping
Delivery by DHL

Product information
Additional info

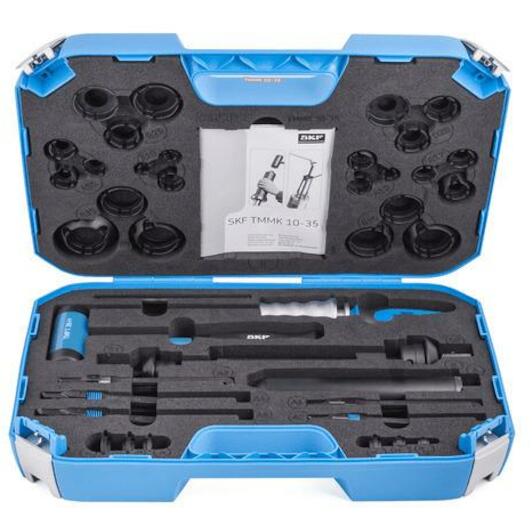

Scope of delivery

5x sets of 3 arms, size A1 to A5
2x spindles, size S1 and S2
1x Spindle holder
1x Sliding hammer
24x Impact rings sizes A and B
Impact sleeves sizes A and B
1x Dead blow hammer
6x Spindle support rings
1x printed Instruction for Use (language free)
1x Carrying case (size C)

Product description

The SKF TMMK series is designed for the quick and precise mounting and dismounting of deep groove ball bearings from and in shafts, housings and blind housings. For mounting, a multi-purpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products. The puller for dismounting grips inside the deep groove bearings raceway with especially designed claws.

For selected deep groove bearing the one kit to dismount and mount them
Allows dismounting bearings from all bearing arrangements
Easy to select and assemble puller
Dismounting force generation by hammer or spindle
Multi-purpose fitting tool included
Mounting force generation with a dead blow hammer for higher efficiency

Key features according to our expert

Specifications / All features

Brand: SKF
01990291
EAN: 7316573275084
Supplier number: SKF TMMK 10-35

Number of sleeves: 2, named A and B
Hammer width: 4.53
Mounting force generation: Hammer
Models of rings: 2, named A and B
Dismounting force generation: Mechanical spindle or Sliding hammer
Case dimensions (l x h x w): 530 x 110 x 360 mm
Hammerhead: Sturdy polyurethane (PU) preventing damage to the sleeve heads
Number of rings: 24
Total product weight: 16.76
Hammer weight: 1.98
Hammer length: 12.4
Effective spindle length: Spindle S1: 214 mm;Spindle S2: 214 mm
Color code: Hammer: Black/Blue;Puller: Black metallic;Rings: Black;Sleeves: Black
Hammer type: Dead blow hammer
