SKF TMMD 100 bearing puller set for blind bearing housings

1,173.60 tax incl.

€969.92 excl. VAT (incl. all environmental contributions)

€1,173.60

On order: delivered from 22/05/2026

set

Ordered before 20:00 - delivered as of 22/05/2026
Free shipping
Delivery by DHL

Product information
Additional info

Scope of delivery

6x sets of 3 arms, size A1 to A6
2x spindles, size S1 and S2
1x Spindle holder
1x printed Instruction for Use (language free)

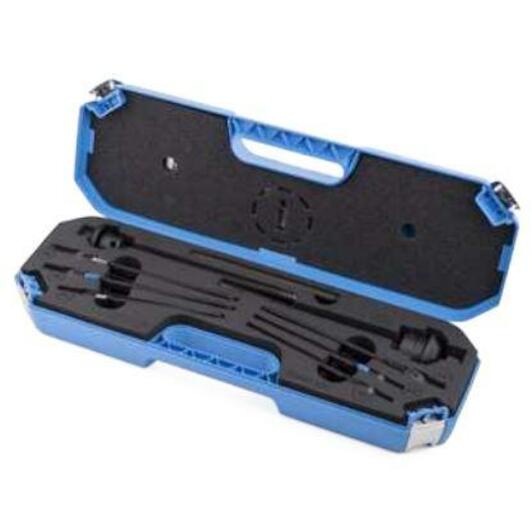

1x Carrying case (size X)

Product description

The TMMD 100 bearing puller is an easy to install tool, suitable for use in both blind housings and shaft applications. Supplied in a sturdy carrying case, it is fitted for dismounting up to 71 different SKF deep groove ball bearings, with shaft diameters ranging between 10 and 100 mm (0.4-3.9 in).

The claws are easy to insert and precisely fit in the bearing's raceway, allowing high dismounting forces
Spanner stop function on spindle for easy and safe handling
Color coded and laser marked arms for easy selection
The puller can also be used to remove sealed bearings from blind housings, after the seal has been removed
Supplied in handy tool case

Key features according to our expert

Specifications / All features

Brand: SKF
01901663
EAN: 7316572332573
Supplier number: SKF TMMD 100

Color code: Black metallic
Material: Medium carbon steels and alloy engineering steels, hardened and tempered
Coating: Black phosphated
Number of arms: 3
Effective spindle length: Spindle S1: 214 mm;Spindle S2: 214 mm
Total product weight: 3.6
Case dimensions (l x h x w): 530 x 85 x 180 mm
Bearing bore diameter range: 10-100
