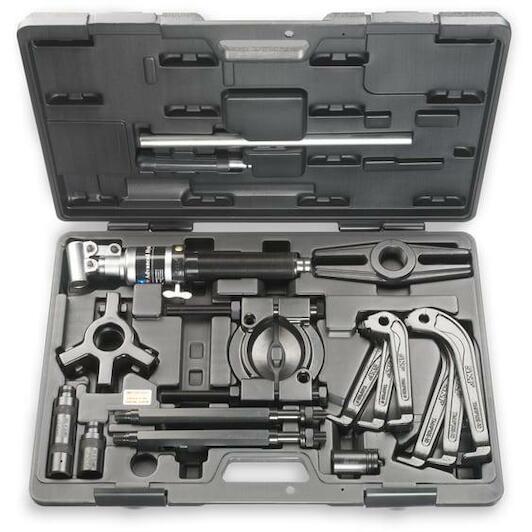

Scope of delivery
- 1 x arm-assembly stand
- 3 x arms, set 1, TMHP10E-9
- 3 x arms, set 2, TMHP10E-10
- 1 x separator set
- 1 x beam
- 2 x main rods
- 2 x extension rods, 125 mm
- 1 x hydraulic spindle TMHS 100, with handle bar
- 2 x extension pieces for hydraulic spindle: 50, 100 mm
- 1 x nosepiece with centre point for hydraulic spindle
- IFU
- Case
Product description
The TMHC 110E is a hydraulic puller kit that combines a jaw puller and a strong back puller. The kit includes two arm sets with different lengths that can be used in 2-arm or 3-arm configuration and a back puller with a maximum reach of 250 mm (9.8 in.). The hydraulic spindle with safety valve enables safe and effortless dismounting for various bearings and components. The spring-loaded centre piece and self-locking puller arms further support safe and easy puller operation.
- Versatile kit with two different arm lengths usable in 2-arm or 3-arm configuration and strong back puller
- Effortless dismounting with hydraulic spindle
- Self-locking arms minimise risks of slippage under load
- Spring-loaded centre point allows easy puller centring
- Supplied with two hydraulic spindle extension pieces to allow quick adaptation to required pulling length
- Hydraulic spindle is equipped with safety valve to prevent puller overload
