What is this bearing puller kit suitable for?

The SKF TMBP 20E is designed to dismount deep groove ball bearings in blind housings on shaft sizes from 30 to 160 mm.

What reach does the puller have for deep bearings?

Using the included extension rods, you achieve an effective arm length of 147 to 547 mm.

Which bearing types can be removed with this kit?

It is compatible with deep groove ball bearings in the 60.., 62.., 63.., 64.., and 16... series.

What is the maximum pulling force of the kit?

The maximum pulling force is 55 kN.

What is included in the carrying case?

You receive 6 adapter pairs (A–F), 1 beam, 1 spindle with nose piece, 2 main rods, 4 extension rods, washers, nuts, and a case.

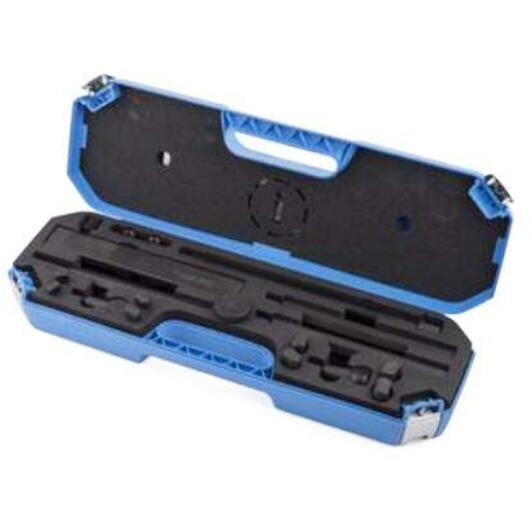

SKF TMBP 20E bearing puller set for blind bearing housings in case

Supplier number: SKF TMBP 20E | EAN 7316572450697

1,028.40 tax incl.

€849.92 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

set

Ordered before 20:00 - delivered as of 08/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Effortless bearing removal in blind housings

Practical benefits

Dismount without dismantling machinery: With the Skf TMBP 20E, you can pull deep groove ball bearings safely without taking apart surrounding machine components.
Extended reach with rods: You easily access deeply recessed bearings using the supplied extension rods for an effective reach up to 547 mm.
Stable and shaft-safe pulling: The self-locking nose piece and spindle spanner stop protect your shaft from damage while maintaining rigid alignment during extraction.

In a nutshell

The right choise for

With the Skf tmbp 20E bearing puller kit, you can dismount deep groove ball bearings from blind housings without stripping down entire machines or shafts. It is the practical choice for overhauling gearboxes, pumps, and electric motors on shafts from 30 to 160 mm. Supplied extension rods give you an effective reach of up to 547 mm to access deeply seated bearings. Delivering a maximum pulling force of 55 kN, the self-locking nose piece and spindle stop keep the shaft fully protected from damage. Complete with 6 adapter sets from a to F, beam, spindle, and rods in a sturdy carrying case.

Product information FAQ

€1,028.40

tax incl.

Key features according to our expert

Scope of delivery

6x sets of 2 bearing adapters, size A to F
1x Beam
1x spindle with nose piece
2x arm rods
4x arm extension rods
4x washers
2x nuts
1x printed Instruction for Use (language free)
1x Carrying case (size X)

Product description

Supplied in a sturdy carrying case, the TMBP 20E is an adapter type puller kit for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in).

Allows a wide of range of deep groove ball bearings to be dismounted
Ball adapters designed for a long service life
Spanner stop function on spindle for easy and safe handling
Nose piece helps minimise damage to shaft, and improves puller stability
Long reach by using extension rods
Supplied in handy toolcase

Documents

⤓ Technical data sheet PDF

All Features

Color code: Black metallic
Material: Medium carbon steels and alloy engineering steels, hardened and tempered
Coating: Black phosphated
Number of arms: 2
Effective spindle length: 225 mm
Total product weight: 5.66
Case dimensions (l x h x w): 530 x 85 x 180 mm
Bearing bore diameter range: 10-100

Brand SKF
01901758
EAN 7316572450697
Supplier number SKF TMBP 20E

Frequently asked questions about this product

Answered by specialists

What is this bearing puller kit suitable for?: The SKF TMBP 20E is designed to dismount deep groove ball bearings in blind housings on shaft sizes from 30 to 160 mm.
What reach does the puller have for deep bearings?: Using the included extension rods, you achieve an effective arm length of 147 to 547 mm.
Which bearing types can be removed with this kit?: It is compatible with deep groove ball bearings in the 60.., 62.., 63.., 64.., and 16... series.
What is the maximum pulling force of the kit?: The maximum pulling force is 55 kN.
What is included in the carrying case?: You receive 6 adapter pairs (A–F), 1 beam, 1 spindle with nose piece, 2 main rods, 4 extension rods, washers, nuts, and a case.
