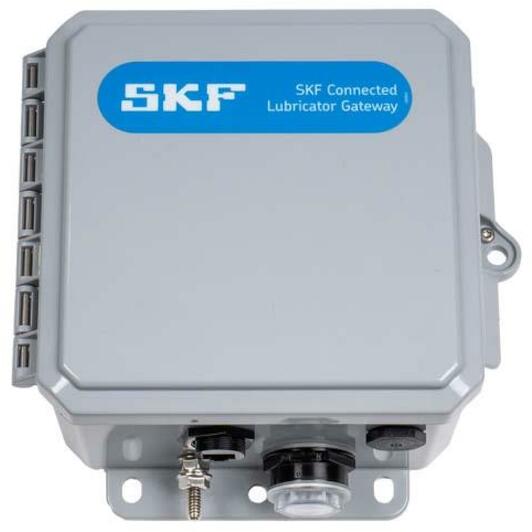

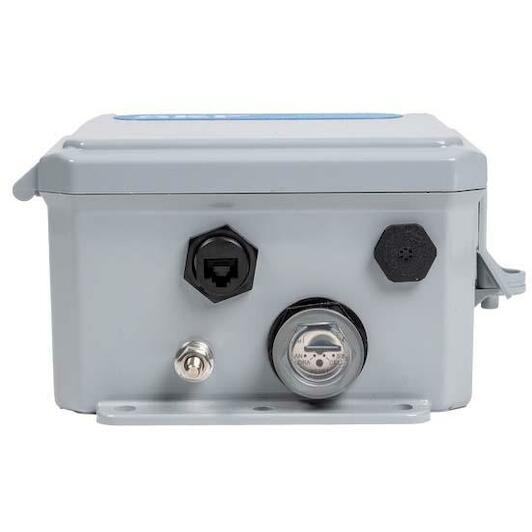

SKF TLDD 2/EU-GAT heavy-duty gateway for connected single-point automatic lubrication systems

1,923.80 tax incl.

€1,589.92 excl. VAT (incl. all environmental contributions)

€1,923.80

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Scope of delivery

Gateway

Product description

European version of the heavy duty gateway. It transmits the information between the connected TLDD lubricator and the internet cloud, in both directions.

Designed for harsh environment (moisture, dust, wind, rain, snow, extreme heat, etc.)
Easy to install
Simple configuration in the lubricator control panel
Can connect thousands of lubricators (virtually unlimited quantity)
Long distance to the lubricator (300 m (985 ft) in open factory environment)

Key features according to our expert

Accessory/Part type: Control block

Specifications / All features

Brand: SKF
08123838
EAN: 07316581912230
Supplier number: SKF TLDD 2/EU-GAT

Accessory/part type: Control block
Power supply range: 37-57
Dimensions (w x l x h): 232 x 199 x 102 mm
Communication security: Encrypted
Recommended storage temperature: -40-85
Amperage (max): 0.7
Led indicator: 4 LED's indicating the connectivity status (Ethernet (LAN), LoRa, system, cellular)
Ambient temperature range: -40-70
Special features: Ethernet Input Power: 37 - 57 VDC, 25 W min. power rating
Power adapter: Seperate PoE adapter available
Degree of protection (ip): IP 67
Cable length: 1830
Volume: Gateway
Max. recommended distance to lubricator: 300
