SKF TKSA 71 shaft alignment device in case

10,162.60 tax incl.

€8,398.84 excl. VAT (incl. all environmental contributions)

€10,162.60

On order: delivered from 27/05/2026

each

Ordered before 20:00 - delivered as of 27/05/2026
Free shipping
Delivery by DHL

Product information

Scope of delivery

Set of 2 Measuring units (M and S)
Set of 2 shaft brackets with chains 480 mm (18.9 in) and threaded rods 80 mm (3.2 in) and magnets
Set of 4 threaded extension rods 120 mm (4.7 in)
Set of 2 extension chains 1 m (3.3 ft)
Micro USB to USB split charging cable
Set of 2 wireless charging pads
Measuring tape
Certificate of calibration and conformance
Quick start guide
Carrying case

Product description

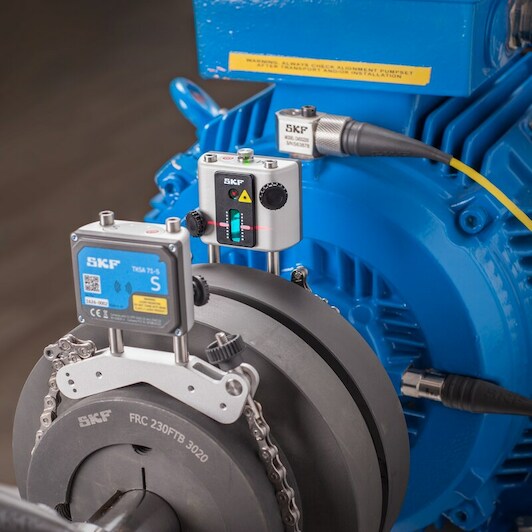

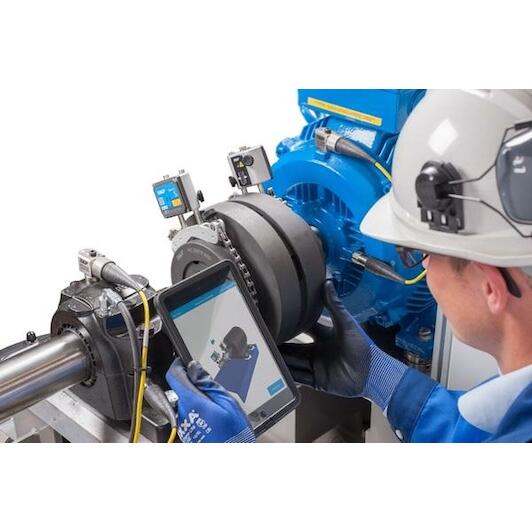

The TKSA 71 is designed for alignments in harsh industrial environments and offers a variety of features for alignment experts. The instrument is very versatile with ultra-compact measuring units for use in extremely narrow spaces. Its dedicated software applications allow convenient alignments of different types of applications, including horizontal and vertical shafts, spacer shafts, and machine trains.

Intuitive software applications
Guided alignment processes and explanatory videos
Comprehensive accessories and dedicated software applications
Up to 10 m measurement distance, disturbance compensation and full measurement flexibility
Only 40° of shaft rotation needed, automatic measurement mode and customised alignments with target values
Protection against harsh environments (IP 67)
Ultra-compact measuring units allow alignments in extremely narrow spaces
Free apps and demonstration mode and tutorial videos for performing alignments
Robust trolley case and wireless in-case charging

Key features according to our expert

Alignment tool type: Shaft alignment tool
Measuring range: 20-150 mm

Specifications / All features

Brand: SKF
02822201
EAN: 7316577208583
Supplier number: SKF TKSA 71

Alignment tool type: Shaft alignment tool
Measuring range: 20-150 mm
Communications: Bluetooth 4.0 LE
Case dimensions (l x h x w): 365 x 170 x 295 mm (14.4 x 6.7 x 11.6 in.)
Live correction values: Vertical and horizontal
Operating temperature range: 0-45
Laser power class: 2
Operating system: min. Android 9; min. Apple iOS 9
Recommended applications: Horizontal shafts;Vertical shafts;Machine trains;Spacer shafts;Soft foot;Values
Display: None, Smartphone or tablet needed
Certifications: Calibration certificate (2 years validity)
Mounting: 2x V-brackets (width 15 mm) with chains and magnets
Maximum coupling height: 45
Sensors: 20 mm PSD;Inclinometer ±0.1°
Measuring error (percent): 1
Alignment methods: 3 position measurement 9 -12 -3;Automatic measurement;Free measurement (only 40° shaft rotation needed)
Software update: Via Apple AppStore and Google Play Store
Maximum coupling height with extension: 165
Degree of protection (ip): IP 67 for measuring units and carrying case
Battery life: 8
Laser type: Red line
Shaft diameter: 20 to 150 mm
Material: Measurement units: anodized aluminum front and PC/ABS plastic back cover
Measurement distance: 0.07 to 10 m
