SKF TKSA 41 shaft alignment device

Supplier number: SKF TKSA 41 | EAN 7316576146350

6,472.20 tax incl.

€5,348.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 02/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Precise alignment with the Skf TKSA 41

Practical benefits

Wireless freedom during alignment: You operate the measurement units wirelessly to safely and comfortably align rotating machinery in hard-to-reach locations.
Flexible ninety degree rotation: You achieve accurate shaft alignment starting at any angle with a required rotation sweep of only 90 degrees.
Automatic and detailed reporting: You generate instant PDF reports with pictures from the built-in camera to document your alignment workflow seamlessly.

In a nutshell

The right choise for

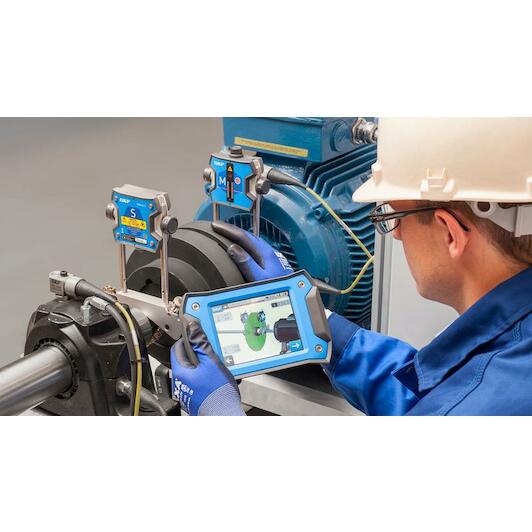

With the Skf tksa 41 wireless laser shaft alignment system, you accurately align coupled shafts across electric motors, pumps, fans, and gearboxes. Thanks to wireless communication via Bluetooth 4.0 LE, you operate the measuring units safely from a distance, even around hard-to-reach rotating machinery. The free measurement function requires a minimum shaft rotation sweep of only 90 degrees, ensuring reliable results in tight spaces. Covering distances from 0.07 to 4 m and shaft diameters from 20 to 150 mm with the included brackets, it protects your bearings and couplings against premature wear. After alignment, the device automatically generates detailed pdf reports with pictures from the built-in camera, all stored in the durable Skf carrying case.

Product information FAQ

€6,472.20

In stock - tax incl.

Key features according to our expert

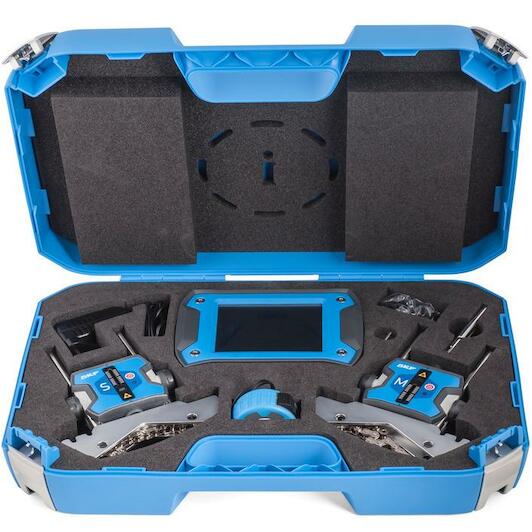

Scope of delivery

Set of 2 Measuring units (M and S)
Display unit
Set of 2 shaft brackets with chains 400 mm (15.8 in) and threaded rods 150 mm (5.9 in)
Set of 4 threaded extension rods 90 mm (3.5 in)
Chain tightening rod
Power supply with various country adapters
Set of 2 USB cables
Measuring tape
Set of 2, A5 sheets with 6 QR code stickers per sheet (total of 12 stickers)
Certificate of calibration and conformance
Quick start guide
SKF carrying case

Product description

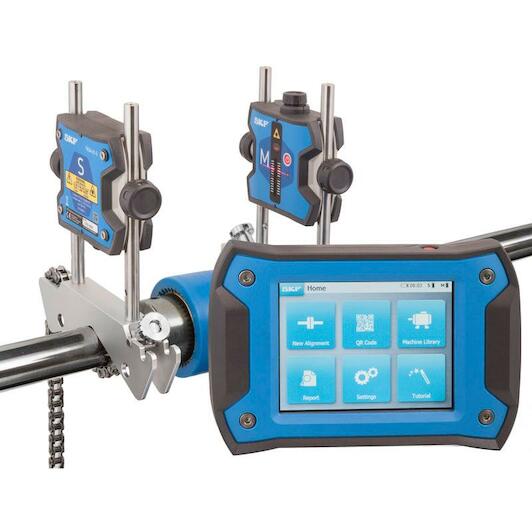

The TKSA 41 has two wireless measurement units, large sized detectors and powerful lasers. The instrument performs precise measurements in even most challenging industrial environments. The easy to use display device helps users to quickly check and correct shaft alignments and improve the machine performance and reliability.

Intuitive touch display device for usage in industrial environments
Wireless measuring units allow easy handling and more measurement flexibility
Measurement positions can be chosen freely and only 90° shaft rotation is required

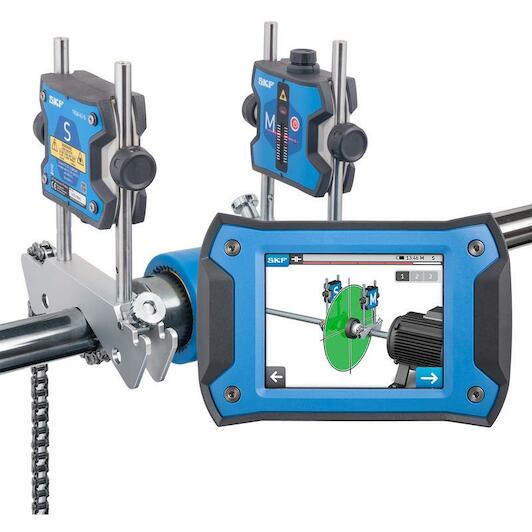

Live view supports all alignment measurements and corrections
Automatic alignment reports are saved in the machine library and can be customised with notes, pictures and QR code. All reports can be exported as pdf
The built-in camera allows pictures to be taken for reports. Machine identification with automatic QR code identification and machine pictures in the library

Documents

⤓ Technical data sheet PDF

All Features

Power adapter: Input: 100V-240V, 50/60Hz AC with country adpaters for EU, US, UK, AUS included;Output: DC 12V 3A
Communications: Bluetooth 4.0 LE or wired with USB cables
Case dimensions (l x h x w): 530 x 110 x 360 mm (20.9 x 4.3 x 14.2 in.)
Live correction values: Vertical and horizontal
Operating temperature range: 0-45
Laser power class: 2
Recommended applications: Horizontal shafts;Soft foot
Display: 5.6" colour resistive touchscreen LCD display
Certifications: Calibration certificate (2 years validity)
Mounting: 2x V-brackets (width 21 mm) with chains
Maximum coupling height: 105
Sensors: 29 mm CCD;Inclinometer ±0.5°
Measuring error (percent): 0.5
Alignment methods: 3 position measurement 9 -12 -3;Automatic measurement;Free measurement (only 90° shaft rotation needed)
Software update: Via USB stick
Maximum coupling height with extension: 195
Degree of protection (ip): IP 54
Battery life: 8
Laser type: Red line
Shaft diameter: 20 to 150 mm
Material: Display unit: High impact PC/ABS plastic with over mould; Measurement units: glassfiber filled PC
Measurement distance: 0.07 to 4 m

Brand SKF
02293289
EAN 7316576146350
Supplier number SKF TKSA 41

Frequently asked questions about this product

Answered by specialists

What shaft diameters does the SKF TKSA 41 support?: With the included V-brackets and chains, it accommodates shaft diameters from 20 to 150 mm.
What is the measuring distance range of this system?: The system measuring distance ranges from 0.07 to 4 m (0.23 to 13.1 ft).
What is the minimum shaft rotation required for measurement?: Using the free measurement method, a minimum shaft rotation of only 90° is required.
How do the measuring units connect to the display?: Communication operates wirelessly via Bluetooth 4.0 LE or wired with the included USB cables.
Can you export alignment reports from the device?: Yes, automatic alignment reports can be exported directly as PDF files via a USB drive.
