SKF TKSA 31 Axis alignment device with red laser and USB cables in case

Supplier number: SKF TKSA 31 | EAN 7316576198922

5,298.40 tax incl.

€4,378.84 excl. VAT (incl. all environmental contributions)

On order: delivered from 06/11/2026

Ordered before 20:00 - delivered as of 06/11/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Product information Accessories

€5,298.40

tax incl.

Key features according to our expert

Alignment tool type: Shaft alignment tool
Measuring range: 20-150 mm

Scope of delivery

Set of 2 Measuring units (M and S)
Display unit
Set of 2 shaft brackets with chains 400 mm (15.8 in) and threaded rods 150 mm (5.9 in)
Chain tightening rod
Power supply with various country adapters
Set of 2 USB cables
Measuring tape
Certificate of calibration and conformance
Quick start guide
SKF carrying case

Product description

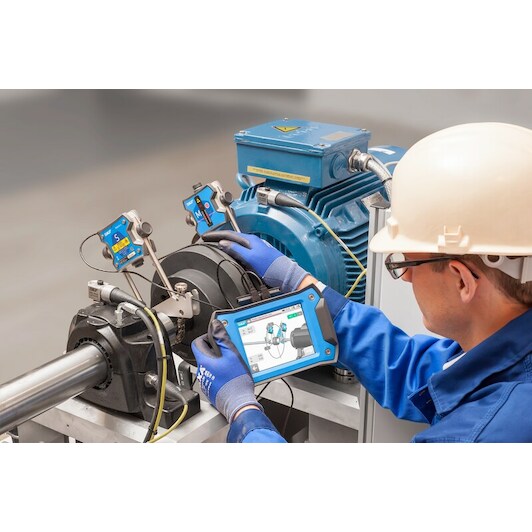

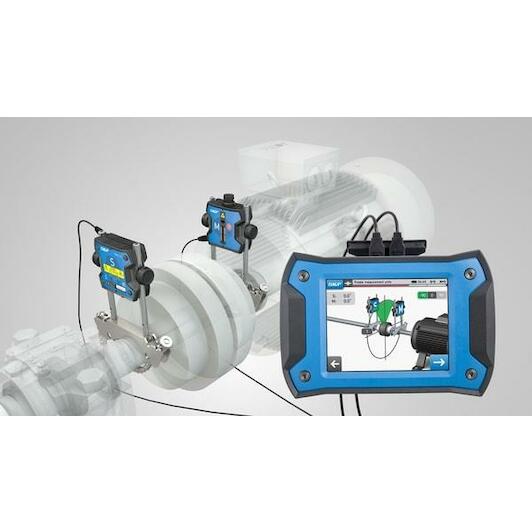

The TKSA 31 has an ergonomic display unit with touch screen which makes the instrument very easy to use. The built-in machine library helps storing alignment reports for multiple machines. Large sized laser detectors in the measuring heads reduce the need for pre-alignments. The embedded soft foot tool helps establish the foundation for a successful alignment. Additional functions are live view and automatic measurement.

Easy measurements with well-known three position measurement method (9-12-3 o'clock) with additional positioning flexibility of 40° around each measurement position
Focus on standard alignment process results in high affordability and effective shaft alignments
Automatic measurement enables hands-free measurements by automatic detection of the right measurement position
Automatic reports are created after each alignment and stored in the machine library. All reports can be exported as pdf

All Features

Alignment tool type: Shaft alignment tool
Measuring range: 20-150 mm
Communications: Wired with USB cables
Case dimensions (l x h x w): 530 x 110 x 360 mm (20.9 x 4.3 x 14.2 in.)
Live correction values: Vertical and horizontal
Operating temperature range: 0-45
Laser power class: 2
Part of a kit: no
Recommended applications: Horizontal shafts;Soft foot
Display: 5.6" colour resistive touchscreen LCD display
Certifications: Calibration certificate (2 years validity)
Mounting: 2x V-brackets (width 21 mm) with chains
Maximum coupling height: 105
Sensors: 29 mm CCD;Inclinometer ±0.5°
Power adapter: Input: 100V-240V, 50/60Hz AC with country adpaters for EU, US, UK, AUS included;Output: DC 12V 3A
Alignment methods: 3 position measurement 9 -12 -3 (140° shaft rotation needed);Automatic measurement
Measuring error (percent): 0.5
Software update: Via USB stick
Maximum coupling height with extension: 195
Degree of protection (ip): IP 54
Battery life: 7
Laser type: Red line
Shaft diameter: 20 to 150 mm
Material: Display unit: High impact PC/ABS plastic with over mould; Measurement units: glassfiber filled PC
Measurement distance: 0.07 to 2 m (up to 4 m with USB extension cables)
