SKF

SKF TKSA 11 shaft alignment device

2,632.80 tax incl.
€2,175.87 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/05/2026
each

  • Ordered before 20:00 - delivered as of 21/05/2026
  • Free shipping
  • Delivery by DHL

Scope of delivery

  • Measuring unit
  • 3 Reference bars
  • Set of 2 shaft brackets with chains 480 mm (18.9 in) and rods 80 mm (3.1 in)
  • Micro USB to USB charging cable
  • Measuring tape
  • Certificate of calibration and conformance
  • Quick start guide
  • SKF carrying case

Product description

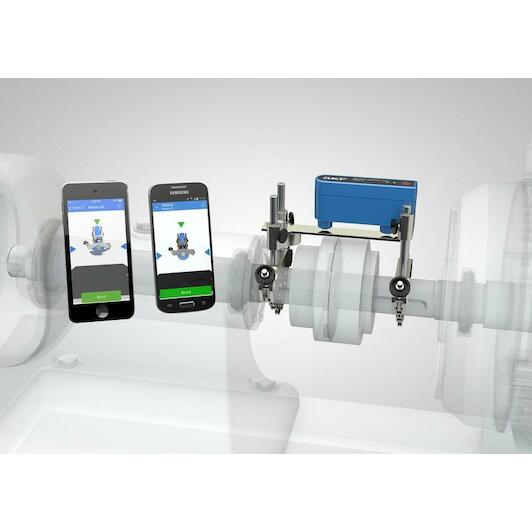

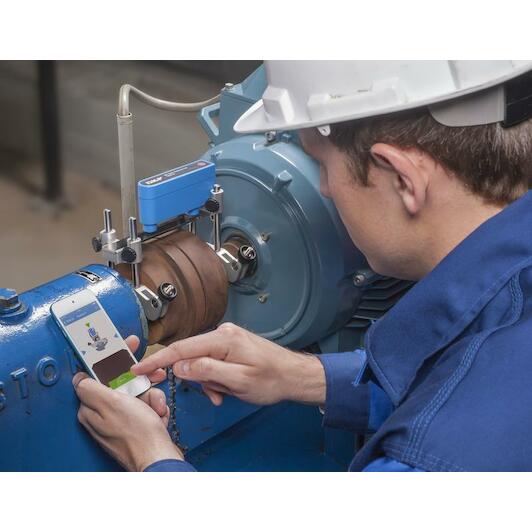

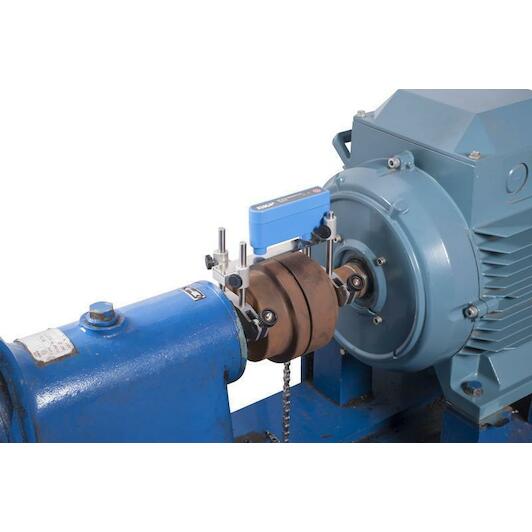

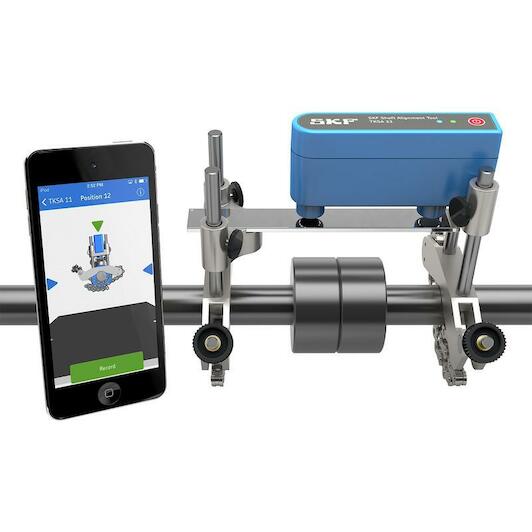

The TKSA 11 uses smartphones and tablets to intuitively guide the user through the shaft alignment process. The TKSA 11 is designed for core alignment tasks and is very easy-to-use. The small size makes the instrument ideal for quick checks during inspection routes and compact installations. The SKF TKSA uses inductive proximity sensors, enabling accurate and reliable shaft alignment.

  • Live view for intuitive measurements and easy horizontal corrections
  • Fully functional demonstration mode in free TKSA 11 app
  • Fast return on investment and very affordable
  • Inductive proximity sensors are not affected by bright sunlight, increase the robustness of the instrument and reduce the influence of backlash
  • Automatic alignment reports can be customised with notes and pictures and can easily be exported as pdf
  • Also available as complete ready-to-use system with rugged, industrial display device and pre-installed apps TKSA 11D2
Key features according to our expert
Specifications / All features
  • Brand: SKF
  • EAN: 7316576051630
  • Supplier number: SKF TKSA 11
Sensors
2x Inductive proximity sensors with 3x reference bars
Communications
Bluetooth 4.0 LE
Case dimensions (l x h x w)
360 x 110 x 260 mm (14.2 x 4.3 x 10.2 in.)
Live correction values
Only horizontal
Operating temperature range
0-45
Operating system
min. Android 9; min. Apple iOS 9
Recommended applications
Horizontal shafts
Display
None, Smartphone or tablet needed
Certifications
Calibration certificate (2 years validity)
Mounting
2x V-brackets (width 15 mm) with chains
Maximum coupling height
55
Measuring error (percent)
2
Alignment methods
3 position measurement 9 -12 -3
Software update
Via Apple AppStore and Google Play Store
Degree of protection (ip)
IP 54
Battery life
18
Laser type
None
Shaft diameter
20 to 160 mm
Material
Measurement unit: PC/ABS plastic
Battery
Rechargeable 1900 mAh LiPo battery
Measurement distance
0 to 185 mm between brackets
