SKF THAP 400E/K10 air-operated oil injector 400 MPa with accessory set in case

13,465.95 tax incl.

€11,128.88 excl. VAT (incl. all environmental contributions)

€13,465.95

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

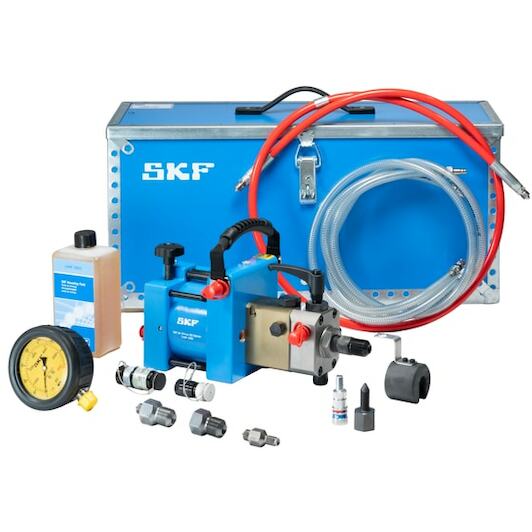

Scope of delivery

Air driven pump 400 MPa (58 000 psi)
2x Low pressure hoses with couplings(1.5 m/4.9 ft)
Air hose coupling(f)
Mounting fluid (1 ltr/0.22 gal)
Pressure gauge, 400 MPa (58 000 psi) with protection sleeve (TMJG S100)
Protection device
Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi)
High pressure hose, 400 MPa (58 000 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.)
Quick connection coupling, M16x1.5 cone female, 400 MPa (58 000 psi)
Quick connection nipple, M16x1.5 cone female, 400 MPa (58 000 psi)
Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi)
Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi)
Instructions for use
Carrying case

Product description

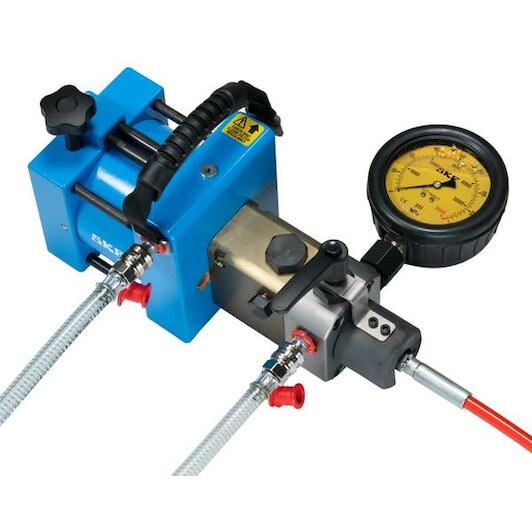

The THAP 400E/K10 set consist of the THAP 400E air-driven pump with accessories, such as pressure gauge, pressure hose with quick connection couplings and connection nipples. Delivered in a wooden carrying case it is suitable for mounting and dismounting OK-couplings, for dismounting large pressure joints like bearings, flywheels, railway wheels and in many similar applications. The is delivered with a 1 litre can SKF Mounting fluid LHMF 300.

Complete set for the required task at hand
By using air-driven pumps instead of hand- operated equipment, a considerable amount of time can be saved
Easy to connect to the application
Easy and quick generation of pressure upto 4000 bar

Key features according to our expert

Drive type: Pneumatic
Max. pressure: 4000 bar
Max. flow rate: 200 l/min

Specifications / All features

Brand: SKF
03324326
EAN: 7316579679800
Supplier number: SKF THAP 400E/K10

Drive type: Pneumatic
Max. pressure: 4000 bar
Max. flow rate: 200 l/min
Pressure gauge: Yes
Air pressure: 3-7
Maximum pressure: 4000
Dimensions (w x l x h): 171 x 405 x 202 mm
Housing material: Aluminium;Alloy tool steel
Oil container: No
Case dimensions (l x h x w): 690 x 245 x 310 mm
Operating temperature range: 0-45
Oil viscosity (maximum): 1500
Recommended applications: OK Couplings;Large pressure joints;Oil injection for large gears and railway wheels
Air pressure limiter: 7 bar
Oil outlet thread: G 3/4
Volume per stroke: 0.64
Product weight: 16.9
Air consumption: 200
Color code: Blue;Metallic grey
Pressure ratio: 1:667
