SKF THAP 400E air-operated hydraulic pump 400 MPa in case

Supplier number: SKF THAP 400E | EAN 7316572488454

11,602.60 tax incl.

€9,588.93 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Product information Accessories

€11,602.60

tax incl.

Key features according to our expert

Drive type: Pneumatic
Max. pressure: 4000 bar
Max. flow rate: 200 l/min

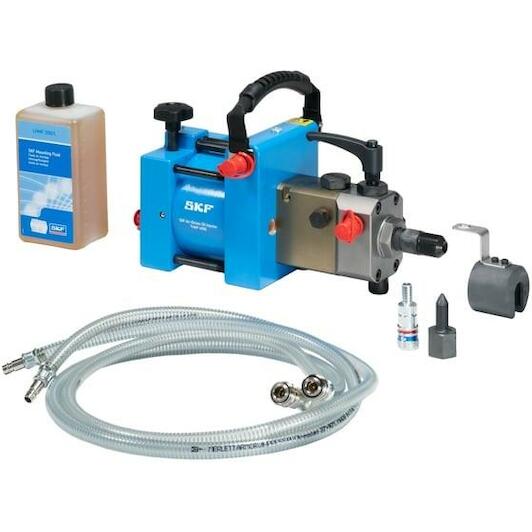

Scope of delivery

Air driven pump 400 MPa (58 000 psi)
2x Low pressure hoses with couplings(1.5 m/4.9 ft)
Air hose coupling(f)
Mounting fluid (1 ltr/0.22 gal)
Instructions for use
Carrying case

Product description

The THAP 400E air-driven oil injector can be used for mounting and dismounting SKF OK Couplings, large pressure joints such as bearings, flywheels, couplings and railway wheels. It is also suitable for similar applications for pressures up to 400 MPa/58,000 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismounting fluids are recommended for use with the THAP 400E.

Time savings compared to hand operated oil injectors
Portable
Continuous supply of oil
Internal air pressure limiter helps ensure safe operation
Low air consumption
Wide operating temperature range
Sturdy storage boxes

All Features

Drive type: Pneumatic
Max. pressure: 4000 bar
Max. flow rate: 200 l/min
Pressure gauge: Optional
Air pressure: 3-7
Maximum pressure: 400
Dimensions (w x l x h): 171 x 405 x 202 mm
Housing material: Aluminium;Alloy tool steel
Oil container: No
Case dimensions (l x h x w): 690 x 245 x 310 mm
Operating temperature range: 0 to 45 ° C
Oil viscosity (maximum): 1500
Recommended applications: OK Couplings;Large pressure joints;Oil injection for large gears and railway wheels
Air pressure limiter: 7 bar
Oil outlet thread: G 3/4
Volume per stroke: 0.64
Product weight: 13
Air consumption: 200
Color code: Blue;Metallic grey
Pressure ratio: 1:667
