SKF

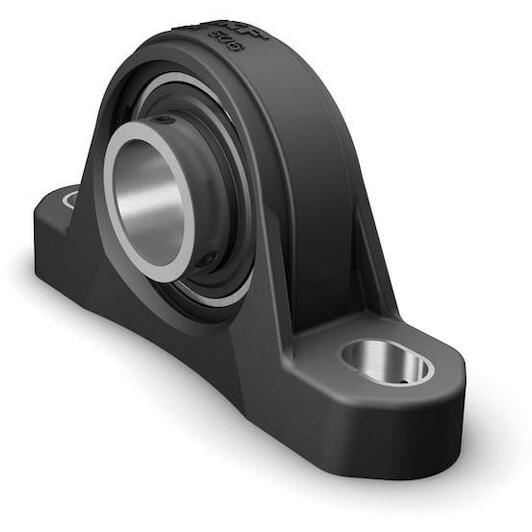

SKF SYK 25 TF ball bearing unit 25 mm

Recommended Retail Price €99.70
49.20 tax incl.
€40.66 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing that is lightweight but robust and has excellent corrosion resistance. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Designed for a constant and alternating rotation
  • Excellent corrosion resistance
  • Lightweight
  • Recyclable
Key features according to our expert
  • Shaft diameter: 25 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Composite
  • Material (bearing): Steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316571101446
  • Supplier number: SKF SYK 25 TF
Shaft diameter
25 mm
Bore type
Cylindrical
Material (bearing housing)
Composite
Material (bearing)
Steel
Number of bolt holes for fasteners
2
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Bearing steel
Housing type
Pillow block
Material, housing
Composite
Basic static load rating
7.8
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
3
Tightening torque, set screw
4
Centre height (pillow block)
36.5
Grease fitting
Without
Application
For agricultural applications
Retaining feature, inner ring
Set screws
Bearing width, total
34.1
Basic dynamic load rating
14
Coating
Without
Housing overall width
32
Centre distance between bolt holes
105.5
Relubrication hole
Without
Fastening bolt hole type
Plain
Limiting speed
7000
Sealing, unit
Optional end cover
Attachment bolt diameter
10
Set screw
M6x0.75
