skf-syh-1-3-8-wf-syh-1-3-8-wf

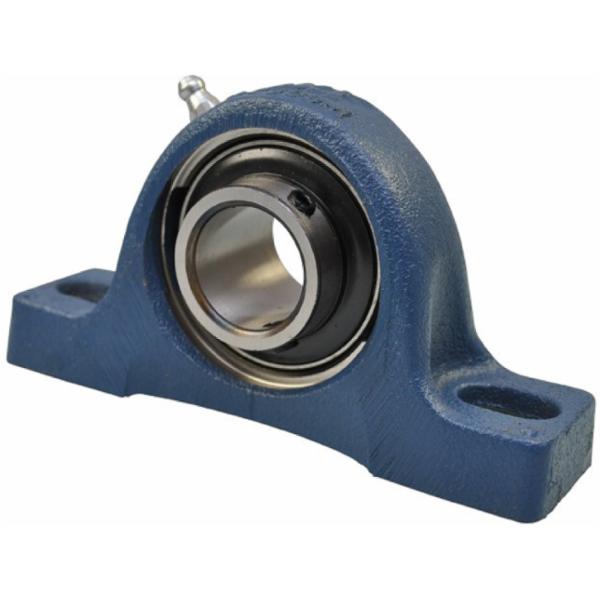

SKF SYH 1.3/8 WF ball bearing unit 31.75 mm

SKF
Supplier number: SKF SYH 1.3/8 WF | EAN 7316577755773
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Shaft diameter: 31,75 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel

All Features

Shaft diameter
31,75 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Material, bearing
Bearing steel
Sealing, bearing
Seal and flinger on both sides
Sealing type
Contact, standard
Centre distance between bolt holes
126 mm
Centre height (pillow block)
46 mm
Lubricant
Grease
Number of bolt holes for fasteners
2
Basic static load rating
15.3 kN
Material, housing
Cast iron
Bearing width, total
51.1 mm
Retaining feature, inner ring
Eccentric collar
Rubber seating ring
Without
Note
Limiting speed with shaft tolerance h6
Grease fitting
With
Sealing, unit
Optional end cover
Limiting speed
5,300 r/min
Fastening bolt hole type
Plain
Relubrication hole
With
Housing overall width
45 mm
Basic dynamic load rating
25.5 kN
Coating
Without
Housing type
Pillow block
  • Brand SKF
  • EAN 7316577755773
  • Supplier number SKF SYH 1.3/8 WF
