SKF

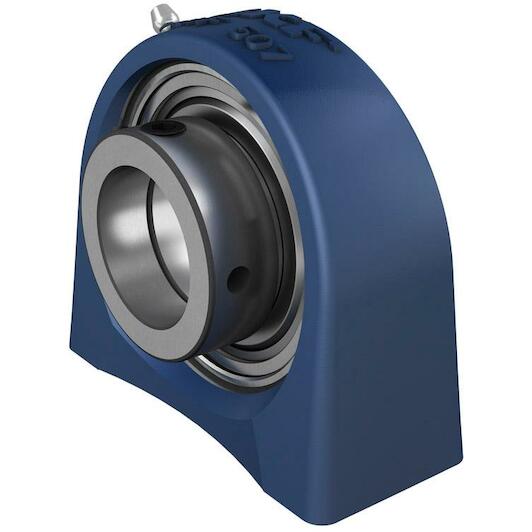

SKF SYF 20 FM ball bearing unit 20 mm

Recommended Retail Price €111.86
55.20 tax incl.
€45.62 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 3 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring and is locked onto the shaft by an eccentric locking collar, making it easy to mount.

  • Strong
  • Narrow design
  • Ready to mount
  • Lubricated and sealed bearing
  • Designed for rotation in one direction
  • Accommodate static initial misalignment
Key features according to our expert
  • Shaft diameter: 20 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316570702712
  • Supplier number: SKF SYF 20 FM
Shaft diameter
20 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Housing type
Pillow block
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal on both sides
Material, bearing
Bearing steel
Application
For material handling applications
Set screw
M6x0.75
Number of bolt holes for fasteners
2
Hexagonal key size for set screw
3
Tightening torque, set screw
4
Centre height (pillow block)
33.3
Grease fitting
With
Material, housing
Cast iron
Note
Limiting speed with shaft tolerance h6
Bearing width, total
30.5
Basic static load rating
6.55
Basic dynamic load rating
12.7
Coating
Without
Housing overall width
32
Retaining feature, inner ring
Eccentric collar
Relubrication hole
With
Fastening bolt hole type
Threaded
Limiting speed
8500
Sealing, unit
Without
Centre distance between bolt holes
50.8
Attachment thread diameter
M8
