SKF

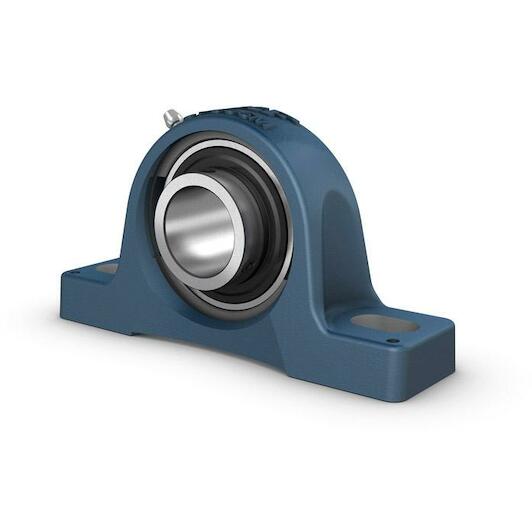

SKF SY 60 TR ball bearing unit 60 mm

Recommended Retail Price €419.71
207.60 tax incl.
€171.57 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Strong
  • Ready to mount
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 60 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316570296631
  • Supplier number: SKF SY 60 TR
Shaft diameter
60 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Number of bolt holes for fasteners
2
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, multiple
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Bearing steel
Housing type
Pillow block
Material, housing
Cast iron
Basic static load rating
36
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
5
Tightening torque, set screw
16.5
Centre height (pillow block)
69.9
Grease fitting
With
Application
For material handling applications
Retaining feature, inner ring
Set screws
Bearing width, total
65.1
Basic dynamic load rating
52.7
Coating
Without
Housing overall width
60
Centre distance between bolt holes
190.5
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
1800
Sealing, unit
Optional end cover
Attachment bolt diameter
16
Set screw
M10x1
