What is the SKF SY 510 M?

It is a cast-iron pillow block housing built to ISO standards, designed to accommodate an insert bearing with a spherical outer ring.

What is the spherical seating diameter?

The spherical seating diameter of this housing is 90 mm.

Is the bearing insert included with the housing?

No, this is the standalone housing only. You can fit a compatible 90 mm outer diameter insert bearing of your choice.

Can this housing be relubricated?

Yes, it comes equipped with a relubrication hole and grease fitting for regular maintenance.

What is the distance between bolt hole centres?

The nominal centre distance between the two mounting bolt holes is 157 mm.

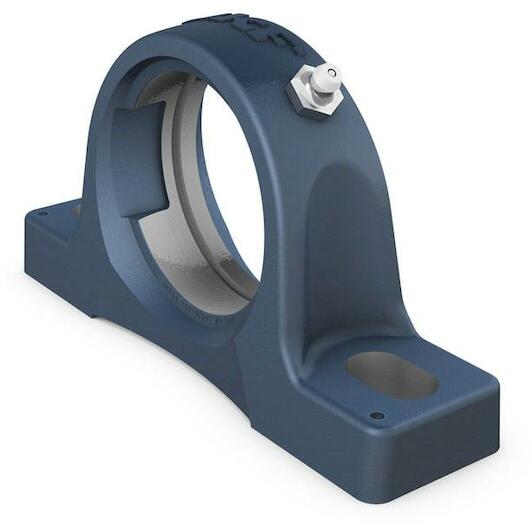

SKF SY 510 M standing bearing housing cast iron 90 mm

Supplier number: SKF SY 510 M | EAN 7316571040226

Recommended Retail Price €85.10

41.95 tax incl.

€34.67 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable mounting with Skf housings

Practical benefits

Robust cast iron build: The rigid cast iron housing absorbs heavy loads from multiple directions and gives you dependable structural stability.
Direct and secure mounting: You can bolt the housing directly to the support surface with two fastening holes for a fast, stable fit.
Convenient integrated relubrication: A built-in grease fitting allows you to relubricate insert bearings easily to maintain long-lasting, smooth operation in demanding environments.

In a nutshell

The right choise for

With the Skf sy 510 M pillow block housing, you secure a highly robust and dependable foundation for demanding shaft assemblies. Built from rigid cast iron to iso standards, this housing effortlessly absorbs heavy mechanical loads and vibrations across industrial conveyors, drivetrains, and agricultural machinery. You can bolt it directly to a flat support surface using the two mounting holes with a 157 mm bolt centre distance. Designed to accommodate insert bearings with a 90 mm spherical seating diameter, it compensates for initial shaft misalignments. The integrated grease fitting ensures fast, convenient relubrication to keep your machinery running smoothly.

Product information FAQ

€41.95

In stock - tax incl.

Key features according to our expert

Seat diameter: 90 mm
Material (bearing housing): Cast iron

Product description

Pillow (plummer) block housings are designed to accommodate an insert bearing. The cast iron housings are strong, stiff and cost-effective. They are suitable for most applications and can be bolted directly to a support surface.

Accommodate heavy loads in different directions
High degree of stiffness
Narrow design

Documents

⤓ Technical data sheet PDF

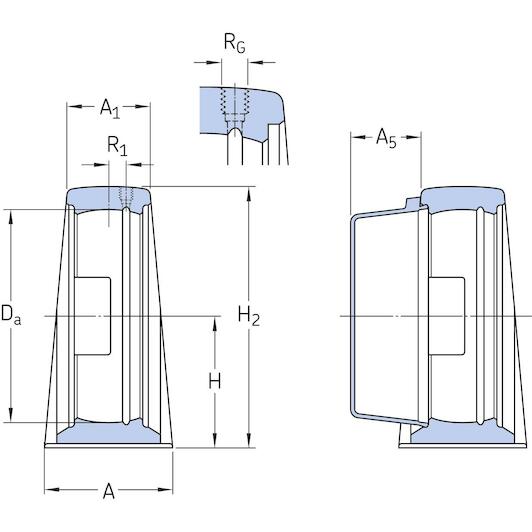

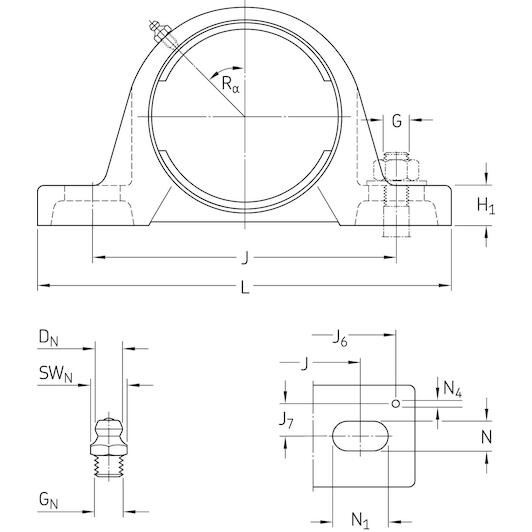

All Features

Seat diameter: 90 mm
Material (bearing housing): Cast iron
Grease fitting: With
Centre height (pillow block): 57.2
Spherical seating diameter: 90
Housing type: Pillow block
Number of bolt holes for fasteners: 2
Centre distance between bolt holes: 157
Fastening bolt hole type: Plain
Relubrication hole: With
Housing overall width: 54
Coating: Without
Material, housing: Cast iron

Brand SKF
01190265
EAN 7316571040226
Supplier number SKF SY 510 M

Frequently asked questions about this product

Answered by specialists

What is the SKF SY 510 M?: It is a cast-iron pillow block housing built to ISO standards, designed to accommodate an insert bearing with a spherical outer ring.
What is the spherical seating diameter?: The spherical seating diameter of this housing is 90 mm.
Is the bearing insert included with the housing?: No, this is the standalone housing only. You can fit a compatible 90 mm outer diameter insert bearing of your choice.
Can this housing be relubricated?: Yes, it comes equipped with a relubrication hole and grease fitting for regular maintenance.
What is the distance between bolt hole centres?: The nominal centre distance between the two mounting bolt holes is 157 mm.
