SKF

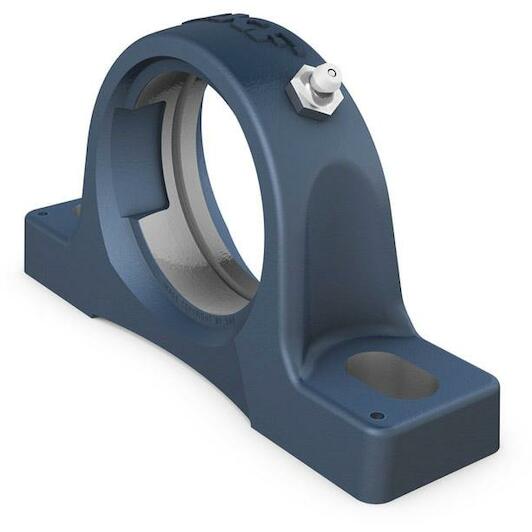

SKF SY 503 M standing bearing housing cast iron 40 mm

Recommended Retail Price €40.66
19.95 tax incl.
€16.49 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Pillow (plummer) block housings are designed to accommodate an insert bearing. The cast iron housings are strong, stiff and cost-effective. They are suitable for most applications and can be bolted directly to a support surface.

  • Accommodate heavy loads in different directions
  • High degree of stiffness
  • Narrow design
Key features according to our expert
  • Seat diameter: 40 mm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316570971088
  • Supplier number: SKF SY 503 M
Seat diameter
40 mm
Material (bearing housing)
Cast iron
Grease fitting
With
Centre height (pillow block)
30.2
Spherical seating diameter
40
Housing type
Pillow block
Number of bolt holes for fasteners
2
Centre distance between bolt holes
97
Fastening bolt hole type
Plain
Relubrication hole
With
Housing overall width
32
Coating
Without
Material, housing
Cast iron
