SKF

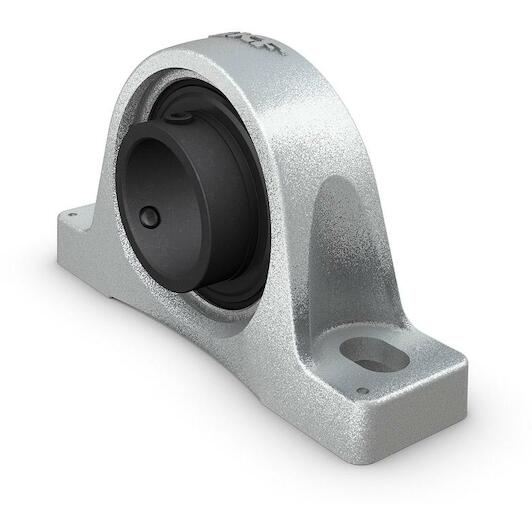

SKF SY 40 TF/VA201 ball bearing unit 40 mm

Recommended Retail Price €619.22
306.40 tax incl.
€253.22 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for high temperature applications, and for both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Strong
  • For high temperature applications
  • Designed for a constant and alternating rotation
  • Ready to mount
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
Key features according to our expert
  • Shaft diameter: 40 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316571382463
  • Supplier number: SKF SY 40 TF/VA201
Shaft diameter
40 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Material, housing
Cast iron
Grease fitting
Without
Centre height (pillow block)
49.2
Maximum operating temperature
250
Hexagonal key size for set screw
4
Basic static load rating
19
Housing type
Pillow block
Material, bearing
High temperature steel
Sealing, bearing
Shield and flinger on both sides
Sealing type
Non-contact
Rubber seating ring
Without
Lubricant
Solid lubricant
Number of bolt holes for fasteners
2
Application
For high temperature applications
Centre distance between bolt holes
135.5
Bearing width, total
49.2
Basic dynamic load rating
30.7
Coating
Zinc-coated housing and manganese phosphate coated bearing
Housing overall width
48
Retaining feature, inner ring
Set screws
Relubrication hole
Without
Fastening bolt hole type
Plain
Limiting speed
70
Sealing, unit
Without
Attachment bolt diameter
12
Set screw
M8x1
