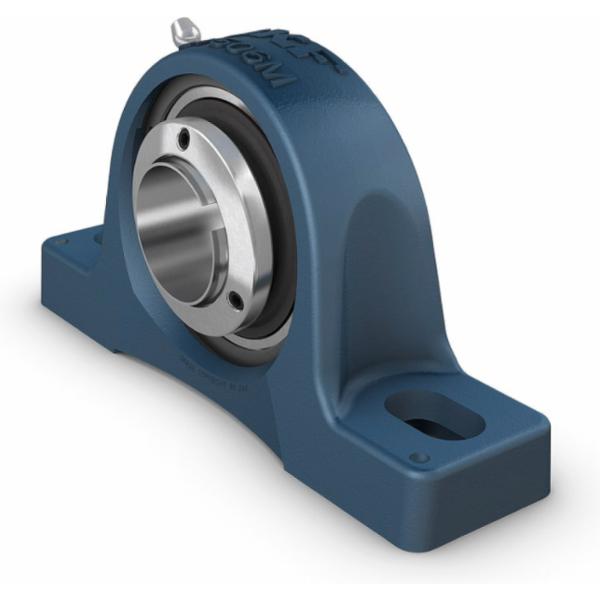

SKF SY 40 LF ball bearing unit 40 mm

Show more features

Shaft diameter

40 mm

Material (bearing)

Steel

Bore type

Cylindrical

Material (bearing housing)

Cast iron

Retaining feature, inner ring

SKF ConCentra

Material, bearing

Bearing steel

Sealing, bearing

Seal and flinger on both sides

Sealing type

Contact, standard

Rubber seating ring

Without

Centre height (pillow block)

49.2 mm

Lubricant

Grease

Number of bolt holes for fasteners

2

Basic static load rating

19 kN

Material, housing

Cast iron

Bearing width, total

43.1 mm

Sealing, unit

Optional end cover

Centre distance between bolt holes

135.5 mm

Grease fitting

With

Limiting speed

4,800 r/min

Fastening bolt hole type

Plain

Relubrication hole

With

Housing overall width

48 mm

Basic dynamic load rating

30.7 kN

Coating

Without

Housing type

Pillow block
