SKF

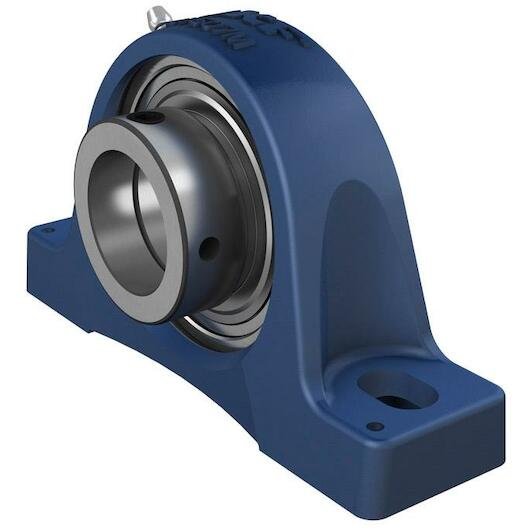

SKF SY 20 FM ball bearing unit 20 mm

Recommended Retail Price €99.43
49.20 tax incl.
€40.66 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 4 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring and is locked onto the shaft by an eccentric locking collar, making it easy to mount.

  • Strong
  • Ready to mount
  • Lubricated and sealed bearing
  • Designed for rotation in one direction
  • Accommodate static initial misalignment
Key features according to our expert
  • Shaft diameter: 20 mm
  • Material (bearing): Steel
  • Bore type: Cylindrical
  • Limit speed: 8500 rpm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316570919431
  • Supplier number: SKF SY 20 FM
Shaft diameter
20 mm
Material (bearing)
Steel
Bore type
Cylindrical
Limit speed
8500 rpm
Material (bearing housing)
Cast iron
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal on both sides
Material, bearing
Bearing steel
Note
Limiting speed with shaft tolerance h6
Housing type
Pillow block
Application
For material handling applications
Basic static load rating
6.55
Hexagonal key size for set screw
3
Tightening torque, set screw
4
Centre height (pillow block)
33.3
Grease fitting
With
Material, housing
Cast iron
Number of bolt holes for fasteners
2
Centre distance between bolt holes
97
Bearing width, total
30.5
Basic dynamic load rating
12.7
Coating
Without
Housing overall width
32
Retaining feature, inner ring
Eccentric collar
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
8500
Sealing, unit
Optional end cover
Attachment bolt diameter
10
Set screw
M6x0.75
