SKF

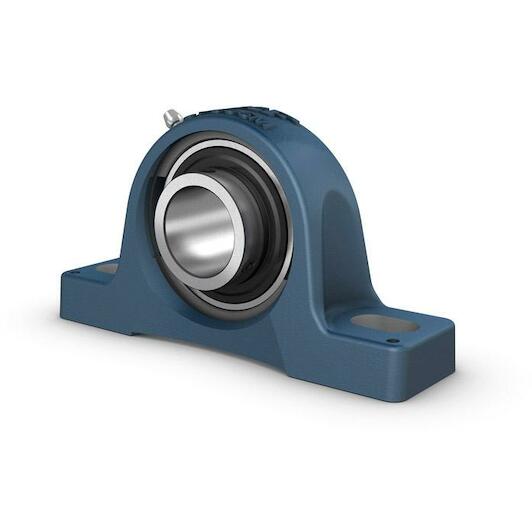

SKF SY 2. TF ball bearing unit 50.8 mm

Recommended Retail Price €273.62
135.40 tax incl.
€111.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

  • Strong
  • Ready to mount
  • Lubricated and sealed bearing
  • Quick locking onto the shaft
  • Cost-effective
Key features according to our expert
  • Shaft diameter: 50,8 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel
Specifications / All features
  • Brand: SKF
  • EAN: 7316577755681
  • Supplier number: SKF SY 2. TF
Shaft diameter
50,8 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Number of bolt holes for fasteners
2
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Sealing, bearing
Seal and flinger on both sides
Material, bearing
Bearing steel
Housing type
Pillow block
Material, housing
Cast iron
Basic static load rating
29
Note
Limiting speed with shaft tolerance h6
Hexagonal key size for set screw
4.763
Tightening torque, set screw
16.5
Centre height (pillow block)
63.5
Grease fitting
With
Application
For material handling applications
Retaining feature, inner ring
Set screws
Bearing width, total
55.6
Basic dynamic load rating
43.6
Coating
Without
Housing overall width
60
Centre distance between bolt holes
171.5
Relubrication hole
With
Fastening bolt hole type
Plain
Limiting speed
3600
Sealing, unit
Optional end cover
Attachment bolt diameter
15.875
Set screw
3/8-24 UNF
