SKF

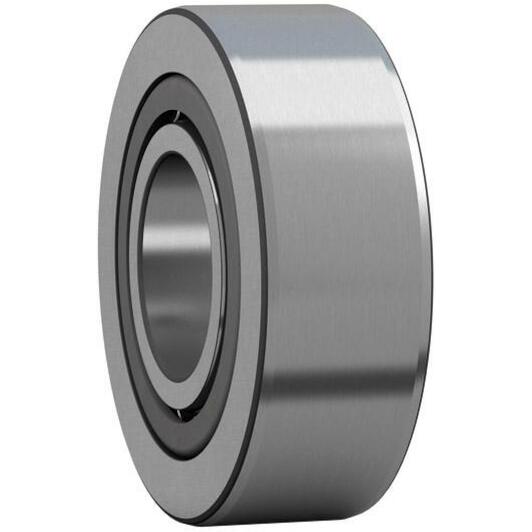

SKF STO 25 support roller with inner ring (Yoke-type idler) 52 x 25 x 16 mm

Recommended Retail Price €154.06
75.60 tax incl.
€62.48 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication. The outer ring, the inner ring and the needle roller and cage assembly can be mounted separately.

  • High radial load carrying capacity
  • Able to withstand shock loads
  • Long service life
  • Ready to mount
  • Separable design

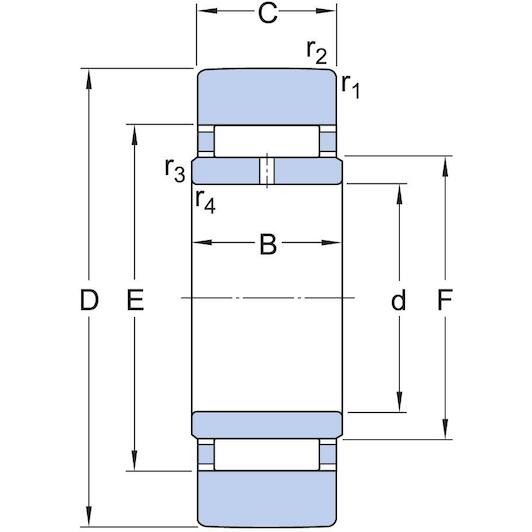

Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 16 mm
  • Outer diameter: 52 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570686746
  • Supplier number: SKF STO 25
Inner diameter
25 mm
Width
16 mm
Outer diameter
52 mm
Axial guidance of outer ring
No
Rolling elements
Needle rollers
Functional outside diameter
52
Material, bearing
Bearing steel
Cage
With
Width, outer ring
15.8
Lubricant
Grease
Relubrication feature
With
Basic static load rating
22.8
Radial internal clearance
CN
Tolerance class
Other
Bearing part
Complete track roller
Width, total
16
Sealing
Without
Outer ring profile
Crowned
Limiting speed
3400
Bore diameter
25
Number of rows
1
Basic dynamic load rating
16.5
Coating
Without
Application
Support roller
