Product description:

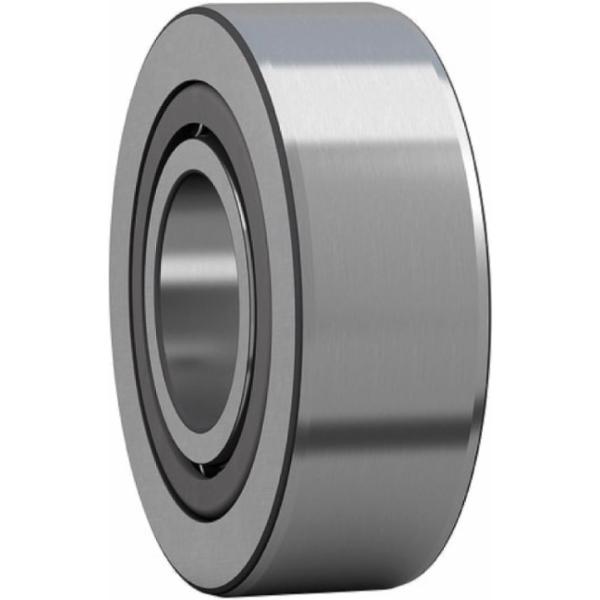

- Support roller without axial guide, with inner ring
Supplier number:
SKF STO 20
|
EAN
7316571064772
Product information
Key features according to our expert
- Inner diameter: 20 mm
- Outer diameter: 47 mm
- Width: 16 mm
All Features
- Inner diameter
- 20 mm
- Outer diameter
- 47 mm
- Width
- 16 mm
- Functional outside diameter
- 47 mm
- Material, bearing
- Bearing steel
- Cage
- With
- Width, outer ring
- 15.8 mm
- Lubricant
- Grease
- Relubrication feature
- With
- Basic static load rating
- 21.2 kN
- Radial internal clearance
- CN
- Tolerance class
- Other
- Bearing part
- Complete track roller
- Axial guidance of outer ring
- No
- Number of flanges, outer ring
- 0
- Sealing
- Without
- Width, total
- 16 mm
- Outer ring profile
- Crowned
- Limiting speed
- 4,000 r/min
- Bore diameter
- 20 mm
- Number of rows
- 1
- Basic dynamic load rating
- 16.1 kN
- Coating
- Without
- Rolling elements
- Needle rollers
- Brand SKF
- EAN 7316571064772
- Supplier number SKF STO 20
