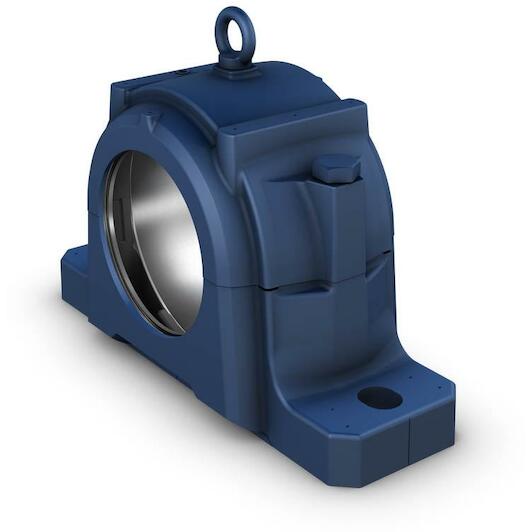

SKF SNL 532 standing bearing housing cast iron two-piece 290 mm

Recommended Retail Price €3,084.48
1,526.95 tax incl.
€1,261.94 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 6 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Free shipping
  • Delivery by DHL

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage
Key features according to our expert
  • Seat diameter: 290 mm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316570617849
  • Supplier number: SKF SNL 532
Seat diameter
290 mm
Material (bearing housing)
Cast iron
Tightening torque, attachment bolt
1310
Bearing housing seal type
Without
Eye bolt
M12
Material, housing
Cast iron
Tightening torque, cap bolt
350
Grease fill, 40%
2000
Grease fill, 20%
1300
Diameter of bearing seat
290
Centre height (pillow block)
170
Width of bearing seat
114
Housing type
Plummer/pillow block
Housing configuration
Two-piece
Number of bolt holes for fasteners
2
Centre distance between bolt holes
470
Attachment bolt diameter
30
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M24x130
