SKF

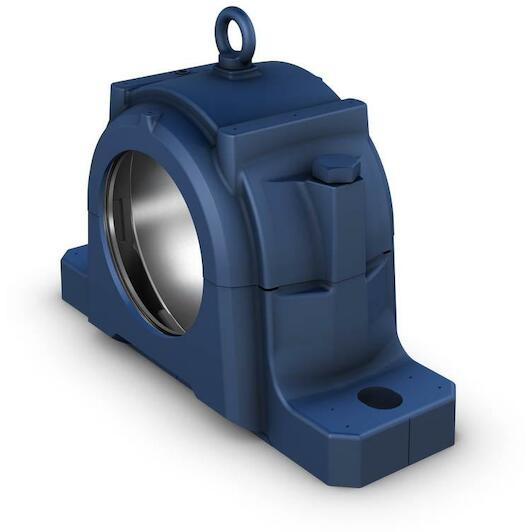

SKF SNL 528 standing bearing housing cast iron two-piece 250 mm

Recommended Retail Price €2,102.12
1,040.60 tax incl.
€860.00 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 6 products in stock.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Free shipping
  • Delivery by DHL

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage
Key features according to our expert

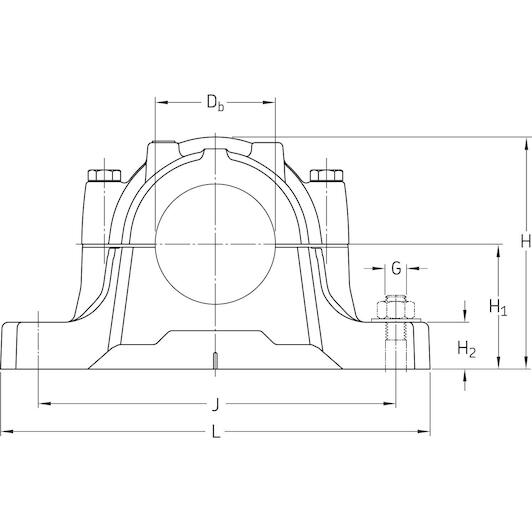

  • Seat diameter: 250 mm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316570839074
  • Supplier number: SKF SNL 528
Seat diameter
250 mm
Material (bearing housing)
Cast iron
Tightening torque, attachment bolt
1310
Bearing housing seal type
Without
Eye bolt
M12
Material, housing
Cast iron
Tightening torque, cap bolt
350
Grease fill, 40%
1400
Grease fill, 20%
900

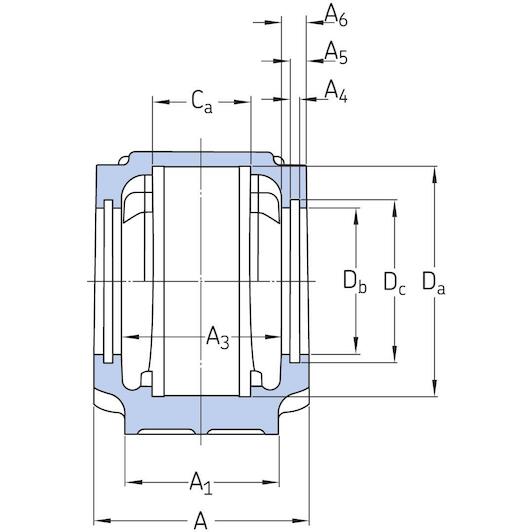

Diameter of bearing seat
250
Centre height (pillow block)
150
Width of bearing seat
98
Housing type
Plummer/pillow block
Housing configuration
Two-piece

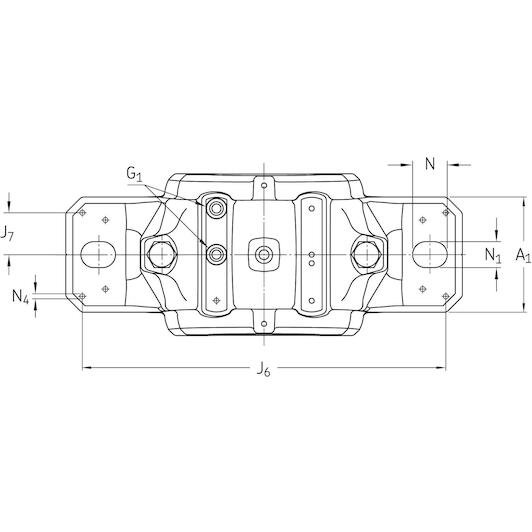

Number of bolt holes for fasteners
2
Centre distance between bolt holes
420
Attachment bolt diameter
30
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M24x140
