What is the housing bore diameter of this unit?

This housing features a 230 mm bore diameter for the matching bearing.

What material is the SKF SNL 526 made from?

This split plummer block housing is manufactured from durable cast iron.

What is the benefit of a split housing design?

The two-piece design greatly simplifies installation, inspection, and maintenance on the shaft.

Is the bearing included with this housing?

No, this product includes only the two-piece housing.

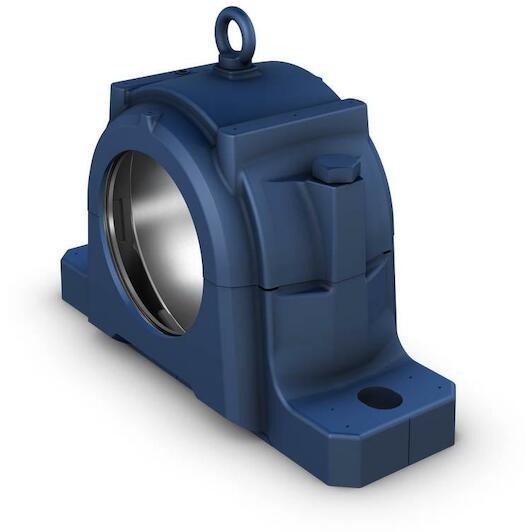

SKF SNL 526 standing bearing housing cast iron two-piece 230 mm

Supplier number: SKF SNL 526 | EAN 7316570613544

Recommended Retail Price €1,835.42

908.60 tax incl.

€750.91 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable bearing support by Skf

Practical benefits

Robust cast iron construction: The durable cast iron body provides exceptional rigidity and dampens operational vibrations under heavy industrial loads.
Simple mounting and maintenance: The split housing design allows you to install and inspect bearings easily without dismantling the entire shaft assembly.
Precise bearing seat diameter: With a 230 mm seat diameter, you achieve a secure and perfectly aligned fit for compatible bearing units.

In a nutshell

The right choise for

With the Skf snl 526 split plummer block housing, you secure robust and reliable support for rotating shafts under heavy industrial loads. The durable cast iron construction delivers outstanding rigidity and effectively dampens vibrations across demanding applications such as heavy-duty conveyor systems and industrial fan drives. Thanks to the two-piece split housing design, you can install, inspect, and maintain bearings quickly without dismantling the entire shaft assembly. Featuring a precise 230 mm seat diameter, it provides a stable and perfectly aligned fit for your compatible bearing.

Product information FAQ

€908.60

In stock - tax incl.

Key features according to our expert

Seat diameter: 230 mm
Material (bearing housing): Cast iron

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

Easy to install
Cost-effective bearing arrangement
Reduce maintenance
Minimize lubricant leakage

Documents

⤓ Technical data sheet PDF

All Features

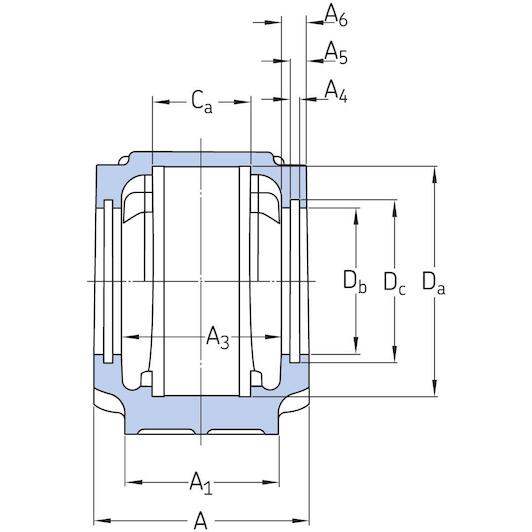

Seat diameter: 230 mm
Material (bearing housing): Cast iron
Tightening torque, attachment bolt: 665
Bearing housing seal type: Without
Eye bolt: M10
Material, housing: Cast iron
Tightening torque, cap bolt: 350
Grease fill, 40%: 1100
Grease fill, 20%: 700
Diameter of bearing seat: 230

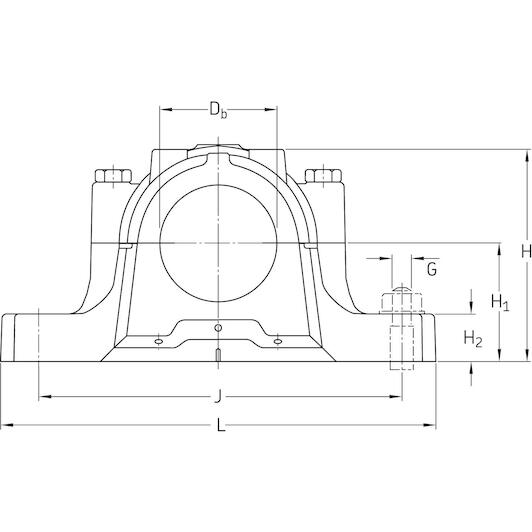

Centre height (pillow block): 150
Width of bearing seat: 90
Housing type: Plummer/pillow block
Housing configuration: Two-piece
Number of bolt holes for fasteners: 2

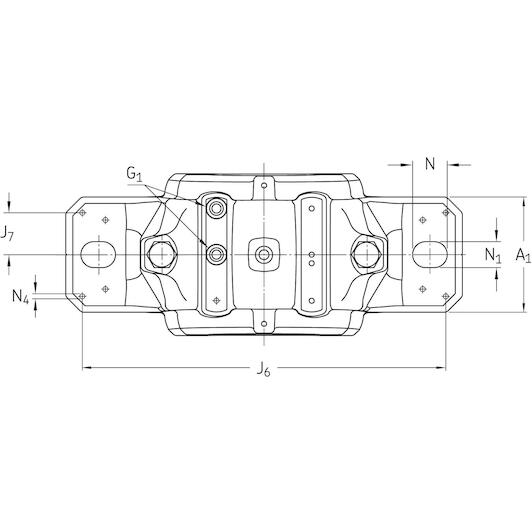

Centre distance between bolt holes: 380
Attachment bolt diameter: 24
Mounting arrangement: Through shaft/Shaft end
Fastening bolt hole type: With holes (unspecified type)
Housing lubrication feature/possibility: Grease
Cap bolt: M24x130

Brand SKF
01231152
EAN 7316570613544
Supplier number SKF SNL 526

Frequently asked questions about this product

Answered by specialists

What is the housing bore diameter of this unit?: This housing features a 230 mm bore diameter for the matching bearing.
What material is the SKF SNL 526 made from?: This split plummer block housing is manufactured from durable cast iron.
What is the benefit of a split housing design?: The two-piece design greatly simplifies installation, inspection, and maintenance on the shaft.
Is the bearing included with this housing?: No, this product includes only the two-piece housing.
