What is the bearing seat diameter of this housing?

The diameter of the bearing seat is 140 mm.

What material is this bearing housing made of?

The housing is manufactured from cast iron.

Is this a split plummer block housing?

Yes, this is a two-piece SNL series housing, which simplifies installation and maintenance.

Does this housing include the bearing?

No, this is the housing only. Bearings and seals must be selected separately.

What bolt size is used for base mounting?

The housing is mounted using M20 attachment bolts.

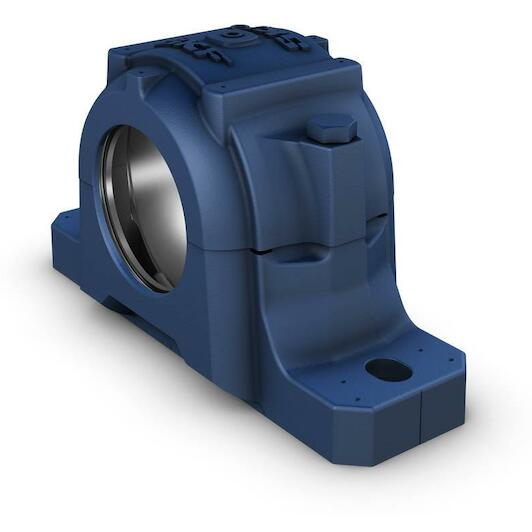

SKF SNL 516-613 standing bearing housing cast iron two-piece 140 mm

Supplier number: SKF SNL 516-613 | EAN 7316570042306

Recommended Retail Price €515.84

255.20 tax incl.

€210.91 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable bearing support by Skf

Practical benefits

Simplified installation and maintenance: The split housing design allows you to install and inspect bearings quickly without disassembling adjoining components.
Sturdy cast iron construction: Heavy-duty cast iron provides superior rigidity, reliably protecting your bearing arrangements under demanding operating conditions.
Accurate and secure fit: The precise 140 mm seating diameter ensures optimal bearing alignment and helps reduce vibration during continuous operation.

In a nutshell

The right choise for

With the Skf snl 516-613 split plummer block housing, you secure robust bearing support for demanding industrial machinery. The split two-piece design enables fast inspection, installation, and maintenance without having to dismantle adjacent shaft components. Built from heavy-duty cast iron, this rigid housing dampens vibrations effectively and shields your bearings from heavy mechanical stress. Featuring a precise 140 mm seating diameter and secure base mounting with M20 bolts, it delivers dependable alignment and extends the operating life of your rotating assemblies.

Product information FAQ

€255.20

In stock - tax incl.

Key features according to our expert

Seat diameter: 140 mm
Material (bearing housing): Cast iron

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

Easy to install
Cost-effective bearing arrangement
Reduce maintenance
Minimize lubricant leakage

Documents

⤓ Technical data sheet PDF

All Features

Seat diameter: 140 mm
Material (bearing housing): Cast iron
Tightening torque, attachment bolt: 385
Bearing housing seal type: Without
Material, housing: Cast iron
Tightening torque, cap bolt: 80
Grease fill, 40%: 280
Grease fill, 20%: 170

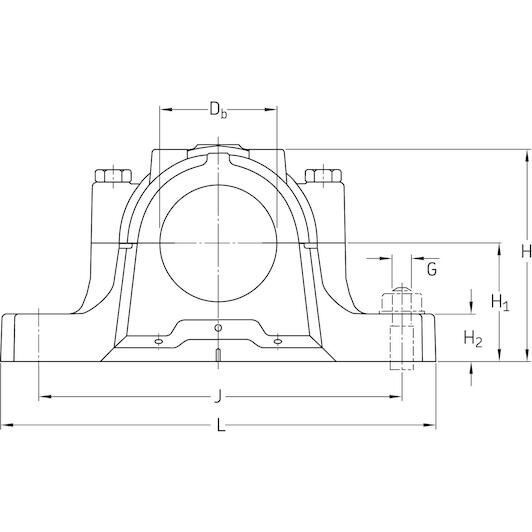

Diameter of bearing seat: 140
Centre height (pillow block): 95

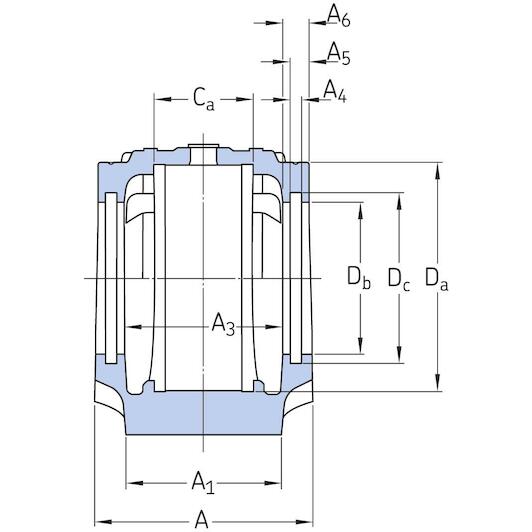

Width of bearing seat: 58
Housing type: Plummer/pillow block
Number of bolt holes for fasteners: 2
Housing configuration: Two-piece

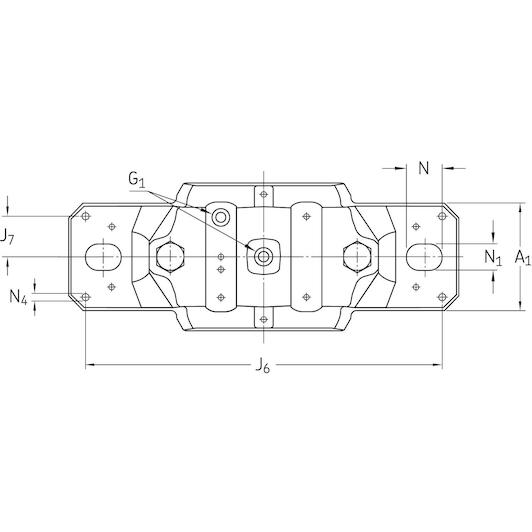

Centre distance between bolt holes: 260
Attachment bolt diameter: 20
Mounting arrangement: Through shaft/Shaft end
Fastening bolt hole type: With holes (unspecified type)
Housing lubrication feature/possibility: Grease
Cap bolt: M12x70

Brand SKF
01231147
EAN 7316570042306
Supplier number SKF SNL 516-613

Frequently asked questions about this product

Answered by specialists

What is the bearing seat diameter of this housing?: The diameter of the bearing seat is 140 mm.
What material is this bearing housing made of?: The housing is manufactured from cast iron.
Is this a split plummer block housing?: Yes, this is a two-piece SNL series housing, which simplifies installation and maintenance.
Does this housing include the bearing?: No, this is the housing only. Bearings and seals must be selected separately.
What bolt size is used for base mounting?: The housing is mounted using M20 attachment bolts.
