SKF

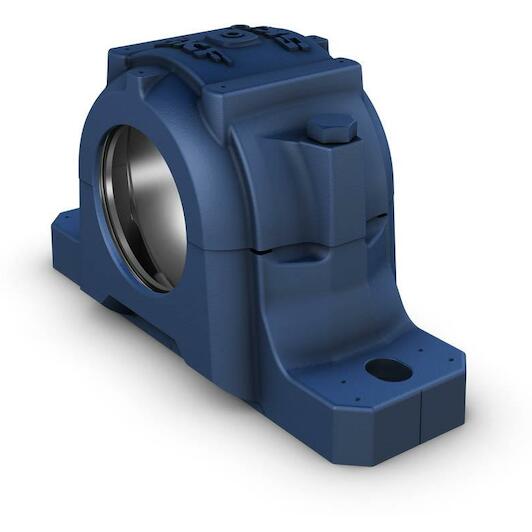

SKF SNL 205 standing bearing housing cast iron two-piece 52 mm

Recommended Retail Price €398.37
197.20 tax incl.
€162.98 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage
Key features according to our expert
  • Seat diameter: 52 mm
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316571185187
  • Supplier number: SKF SNL 205
Seat diameter
52 mm
Material (bearing housing)
Cast iron
Tightening torque, attachment bolt
80
Bearing housing seal type
Without
Material, housing
Cast iron
Tightening torque, cap bolt
50
Grease fill, 40%
25
Grease fill, 20%
15
Diameter of bearing seat
52
Centre height (pillow block)
40
Width of bearing seat
25
Housing type
Plummer/pillow block
Number of bolt holes for fasteners
2
Housing configuration
Two-piece
Centre distance between bolt holes
130
Attachment bolt diameter
12
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M 10x40
