SKF SIR 40 ES rod head with female thread 40 mm, M 35x1.5

Recommended Retail Price €543.24

268.80 tax incl.

€222.15 excl. VAT (incl. all environmental contributions)

SKF SIR 40 ES rod head with female thread 40 mm, M 35x1.5

€268.80 Recommended Retail Price €543.24

On order: delivered from 12/06/2026

each

Ordered before 20:00 - delivered as of 12/06/2026
Free shipping
Delivery by DHL

Product information
Additional info

Product description

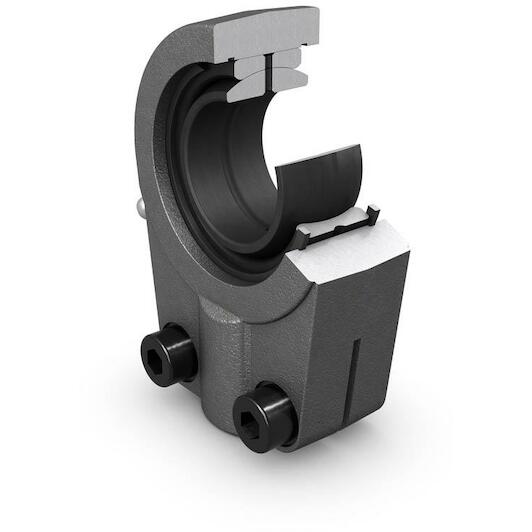

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.

Easy to relubricate
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount

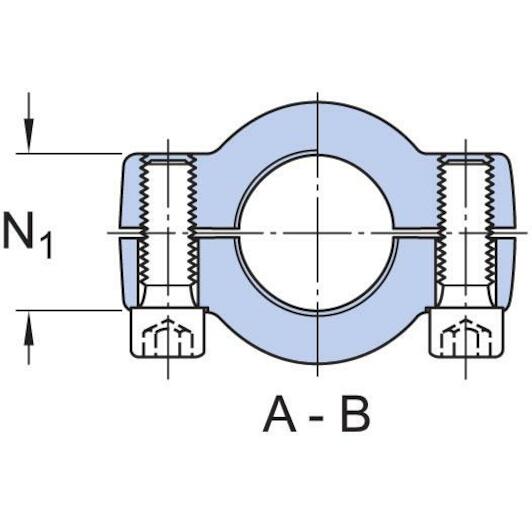

Slotted shank with clamping screws
Suitable for hydraulic cylinders
Bearing can be exchanged

Key features according to our expert

Inner diameter: 40 mm
Connection type: Inner thread
Thread type: Metric fine
Seal (bearing): Without seal
Maintenance free: Nein
Connection size: M35 x 1,5

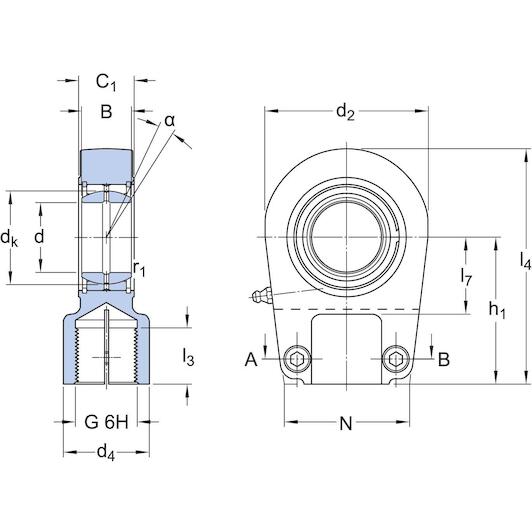

Specifications / All features

Brand: SKF
01390476
EAN: 7316577003669
Supplier number: SKF SIR 40 ES

Inner diameter: 40 mm
Connection type: Inner thread
Thread type: Metric fine
Seal (bearing): Without seal
Maintenance free: Nein
Connection size: M35 x 1,5
Bore diameter, bearing inner ring: 40
Attachment feature, rod end shank: Right-hand female thread and clamping screws
Material, housing: Steel
Sliding contact surface combination: Steel/steel, standard
Housing length, total: 136
Maintenance: Relubrication required
Thread designation: M 35x1.5
Material, outer ring: Bearing steel
Outside diameter, housing eye: 96
Sealing: Without
Basic static load rating: 200
Material, inner ring: Bearing steel
Width, bearing inner ring: 28
Width, housing eye: 35.5
Basic dynamic load rating: 100
Centre height, housing (from end of shank): 85
