SKF

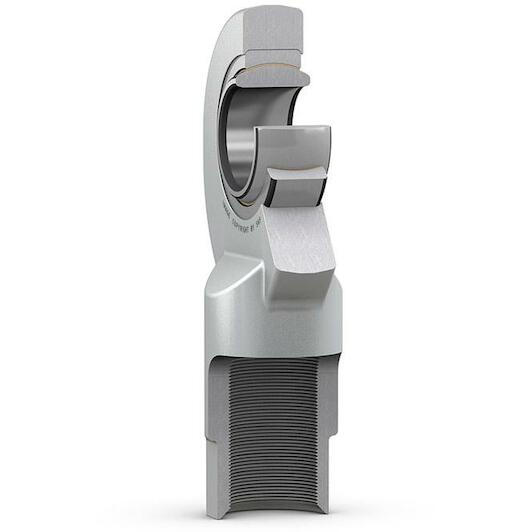

SKF SIL 30 C Rod head with female thread, left-hand thread 30 mm, M 30x2

Recommended Retail Price €450.63
222.95 tax incl.
€184.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/05/2026
each

  • Ordered before 20:00 - delivered as of 20/05/2026
  • Free shipping
  • Delivery by DHL

Product description

These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Long service life
  • Maintenance-free
  • Suitable for heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 30 mm
  • Connection type: Inner thread
  • Thread type: Metric fine - Left
  • Seal (bearing): Without seal
  • Maintenance free: Yes
  • Connection size: M30 x 2

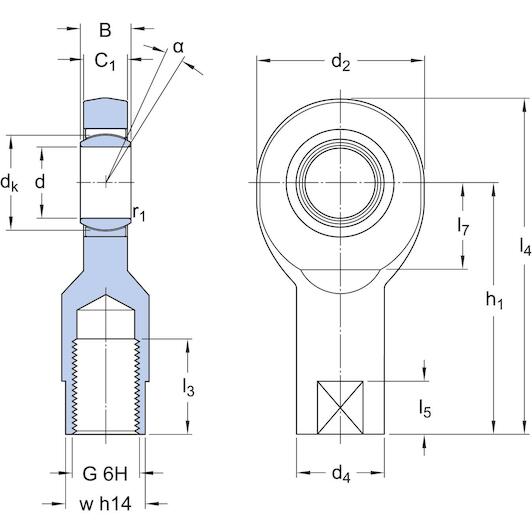

Specifications / All features
  • Brand: SKF
  • EAN: 7316577105479
  • Supplier number: SKF SIL 30 C
Inner diameter
30 mm
Connection type
Inner thread
Thread type
Metric fine - Left
Seal (bearing)
Without seal
Maintenance free
Yes
Connection size
M30 x 2
Bore diameter, bearing inner ring
30
Attachment feature, rod end shank
Left-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE sintered bronze
Housing length, total
149
Maintenance
Maintenance-free
Thread designation
M 30x2
Material, outer ring
Deep-drawing steel
Outside diameter, housing eye
75
Sealing
Without
Basic static load rating
139
Material, inner ring
Bearing steel
Width, bearing inner ring
22
Width, housing eye
20
Basic dynamic load rating
65.5
Centre height, housing (from end of shank)
110
