What thread specification does this rod end have?

This rod end has a metric M16 female thread with a 1.5 mm pitch (M16x1.5).

What is the bore diameter of the bearing?

The inner bore diameter of the spherical plain bearing is 16 mm.

Does this SKF rod end require lubrication?

No, this rod end is maintenance-free and requires no relubrication.

Is this rod end fitted with seals?

No, this model is designed without integrated seals.

Is the female thread right-handed or left-handed?

This model (SIKB) features a standard right-hand female thread.

SKF SIKB 16 F/VZ019 rod head with female thread 16 mm, M 16x1.5

Supplier number: SKF SIKB 16 F/VZ019 | EAN 7316570991703

Recommended Retail Price €214.81

106.20 tax incl.

€87.77 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth articulation with Skf rod end

Practical benefits

Completely maintenance-free operation: The integrated PTFE sliding contact ensures you never need manual relubrication during daily machinery use.
Dependable load handling capacity: Built with a 16 mm bore, it reliably accommodates angular misalignment and heavy industrial forces.
Fast and secure mounting: The standard M16x1.5 female thread enables you to attach directly and rigidly onto pneumatic or hydraulic shafts.

In a nutshell

The right choise for

With the Skf sikb 16 F/VZ019 rod end, you establish a reliable and smooth mechanical connection without the need for periodic relubrication. Featuring a self-lubricating ptfe sliding layer, it effortlessly accommodates oscillating motions, dynamic loads, and angular misalignment. Its 16 mm bore and standard right-hand M16x1.5 female thread allow you to attach it quickly and securely to hydraulic cylinders, pneumatic shafts, or mechanical linkages. This eliminates mechanical play and keeps machine downtime to a minimum.

Product information FAQ

€106.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 16 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M16 x 1,5

Product description

These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.

Long service life
Maintenance-free
Relatively insensitive to contaminants
Low coefficient of friction
Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

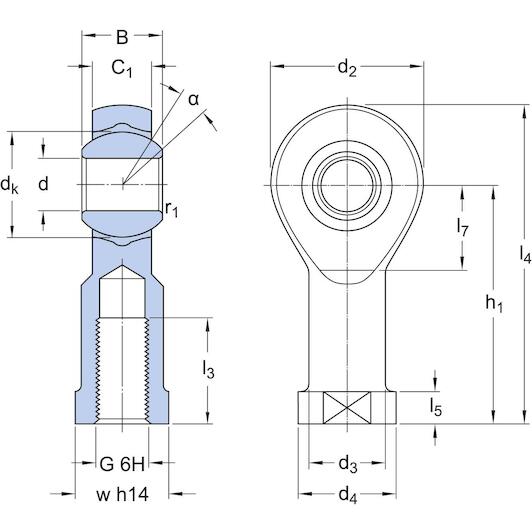

All Features

Inner diameter: 16 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M16 x 1,5
Basic static load rating: 34.5
Attachment feature, rod end shank: Right-hand female thread
Material, housing: Steel
Sliding contact surface combination: Steel/PTFE FRP
Housing length, total: 87
Maintenance: Maintenance-free
Thread designation: M 16x1.5
Outside diameter, housing eye: 43
Bore diameter, bearing inner ring: 16
Sealing: Without
Material, inner ring: Bearing steel
Width, bearing inner ring: 21
Width, housing eye: 15.5
Basic dynamic load rating: 21.4
Centre height, housing (from end of shank): 64

Brand SKF
01942131
EAN 7316570991703
Supplier number SKF SIKB 16 F/VZ019

Frequently asked questions about this product

Answered by specialists

What thread specification does this rod end have?: This rod end has a metric M16 female thread with a 1.5 mm pitch (M16x1.5).
What is the bore diameter of the bearing?: The inner bore diameter of the spherical plain bearing is 16 mm.
Does this SKF rod end require lubrication?: No, this rod end is maintenance-free and requires no relubrication.
Is this rod end fitted with seals?: No, this model is designed without integrated seals.
Is the female thread right-handed or left-handed?: This model (SIKB) features a standard right-hand female thread.
