What thread size does this rod end have?

The SKF SIKAC 16 M/VZ019 features a right-hand metric female thread of M16 with a 1.5 mm pitch (M16 x 1.5).

What is the bore diameter of the bearing?

The inner bore diameter of this rod end is 16 mm.

Is this rod end maintenance-free?

No, this rod end requires regular maintenance and can be relubricated via the grease fitting.

Does this rod end have seals?

No, this model is designed without seals (open design).

SKF SIKAC 16 M/VZ019 rod head with female thread 16 mm, M 16x1.5

Supplier number: SKF SIKAC 16 M/VZ019 | EAN 7316570477771

Recommended Retail Price €198.63

98.20 tax incl.

€81.16 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable linkage with Skf rod end

Practical benefits

Direct and secure mounting: You mount the rod end quickly onto compatible linkages using the M16x1.5 female metric thread.
Smooth movement compensation: The 16 mm bore diameter effectively accommodates angular misalignment during dynamic mechanical operation.
Easy relubrication access: You maintain the sliding contact surfaces easily through the integrated grease fitting for long-lasting operation.

In a nutshell

The right choise for

With the Skf sikac 16 M/VZ019 rod end, you achieve dependable mechanical linkage in machinery and cylinder assemblies. Featuring a 16 mm bore diameter, this rod end smoothly accommodates angular misalignment and enables multi-directional pivoting under alternating loads. Thanks to the M16x1.5 female metric thread, you mount it quickly and securely onto compatible rods. This open, unsealed design includes an integrated grease fitting, allowing you to easily relubricate the sliding contact surfaces for long-lasting, smooth performance.

Product information FAQ

€98.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 16 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M16 x 1,5

Product description

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.

Suitable where lubricant starvation might occur
Simple and ready-to-mount
Easy to relubricate (sizes >= 6)

Documents

⤓ Technical data sheet PDF

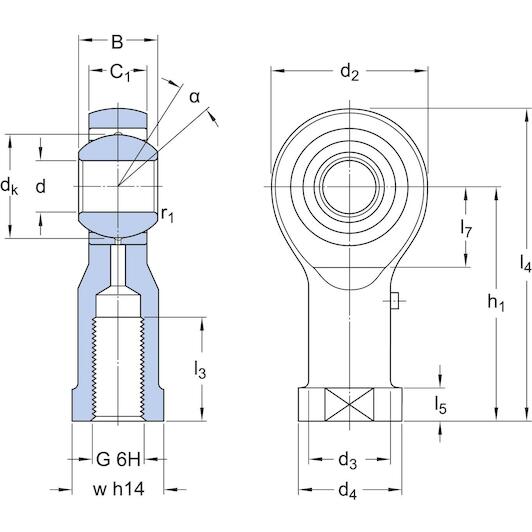

All Features

Inner diameter: 16 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M16 x 1,5
Basic static load rating: 29
Attachment feature, rod end shank: Right-hand female thread
Material, housing: Steel
Sliding contact surface combination: Steel/bronze
Housing length, total: 86
Maintenance: Relubrication required
Thread designation: M 16x1.5
Outside diameter, housing eye: 43
Bore diameter, bearing inner ring: 16
Sealing: Without
Material, inner ring: Bearing steel
Width, bearing inner ring: 21
Width, housing eye: 15.5
Basic dynamic load rating: 21.6
Centre height, housing (from end of shank): 64

Brand SKF
01390780
EAN 7316570477771
Supplier number SKF SIKAC 16 M/VZ019

Frequently asked questions about this product

Answered by specialists

What thread size does this rod end have?: The SKF SIKAC 16 M/VZ019 features a right-hand metric female thread of M16 with a 1.5 mm pitch (M16 x 1.5).
What is the bore diameter of the bearing?: The inner bore diameter of this rod end is 16 mm.
Is this rod end maintenance-free?: No, this rod end requires regular maintenance and can be relubricated via the grease fitting.
Does this rod end have seals?: No, this model is designed without seals (open design).
