What thread size does this SKF rod end feature?

It features an M12 x 1.25 metric right-hand female thread.

Is this rod end maintenance-free?

No, this steel-on-bronze model requires regular maintenance and relubrication.

How is this rod end relubricated?

It can be relubricated via the grease fitting on the housing and through the shank.

Does this bearing include integrated seals?

No, this unit is open and designed without seals.

SKF SIKAC 12 M/VZ019 Rod head with female thread 12 mm, M 12x1.25

Supplier number: SKF SIKAC 12 M/VZ019 | EAN 7316570579765

Recommended Retail Price €117.02

57.80 tax incl.

€47.77 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 7 products in stock.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Durable rod end for articulated movements

Practical benefits

Ready to mount Skf: You achieve a fast and secure connection using the precision M12x1.25 female thread and 12 mm bore.
Smooth motion and alignment: The steel-on-bronze sliding surface accommodates angular misalignments effortlessly while carrying heavy oscillating mechanical loads.
Simple relubrication access: You can relubricate the internal bearing via the built-in grease fitting to ensure long-lasting operational reliability.

In a nutshell

The right choise for

With the Skf sikac 12 M/VZ019 rod end, you create reliable mechanical linkages in industrial machinery, automation equipment, and steering or pivot assemblies. Thanks to the M12x1.25 female thread and 12 mm bore, you can mount the bearing quickly and securely to rods or cylinder ends. The steel-on-bronze sliding contact surface effortlessly accommodates angular misalignment while transferring push and pull forces without binding. This open design without seals is easy to service via the integrated grease fitting on the housing and through the shank, ensuring smooth operation and dependable performance under heavy oscillating loads.

Product information FAQ

€57.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M12 x 1,25

Product description

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.

Suitable where lubricant starvation might occur
Simple and ready-to-mount
Easy to relubricate (sizes >= 6)

Documents

⤓ Technical data sheet PDF

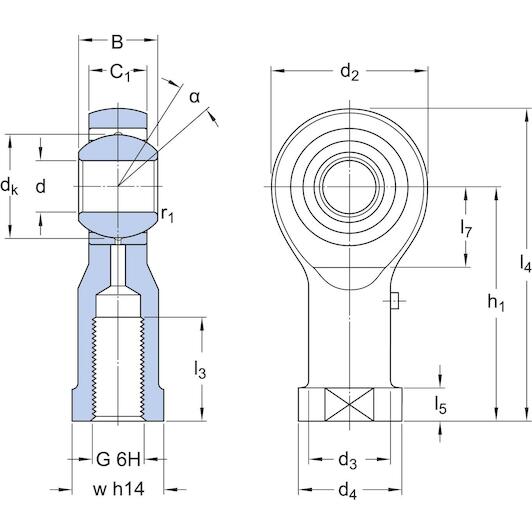

All Features

Inner diameter: 12 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M12 x 1,25
Basic static load rating: 14
Attachment feature, rod end shank: Right-hand female thread
Material, housing: Steel
Sliding contact surface combination: Steel/bronze
Housing length, total: 67
Maintenance: Relubrication required
Thread designation: M 12x1.25
Outside diameter, housing eye: 33
Bore diameter, bearing inner ring: 12
Sealing: Without
Material, inner ring: Bearing steel
Width, bearing inner ring: 16
Width, housing eye: 12.5
Basic dynamic load rating: 12.2
Centre height, housing (from end of shank): 50

Brand SKF
01390788
EAN 7316570579765
Supplier number SKF SIKAC 12 M/VZ019

Frequently asked questions about this product

Answered by specialists

What thread size does this SKF rod end feature?: It features an M12 x 1.25 metric right-hand female thread.
What is the inner bore diameter?: The bore diameter is 12 mm.
Is this rod end maintenance-free?: No, this steel-on-bronze model requires regular maintenance and relubrication.
How is this rod end relubricated?: It can be relubricated via the grease fitting on the housing and through the shank.
Does this bearing include integrated seals?: No, this unit is open and designed without seals.
