What thread type and size does this rod end have?

This rod end features a metric female thread size of M10 with a 1.25 mm pitch (M10 x 1.25).

What is the bore diameter of this rod end?

The inner bore diameter is exactly 10 mm.

Is this rod end maintenance-free?

No, this rod end requires regular lubrication and maintenance.

What sliding contact surface combination is used?

The spherical plain bearing uses a steel-on-bronze sliding contact surface.

Does this bearing come with seals?

No, this rod end bearing is open and without seals.

SKF SIKAC 10 M/VZ019 Rod head with female thread 10 mm, M 10x1.25

Supplier number: SKF SIKAC 10 M/VZ019 | EAN 7316570857719

Recommended Retail Price €90.28

44.60 tax incl.

€36.86 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 09/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Durable rod end for smooth angular alignment

Practical benefits

Reliable Skf rod end: You can quickly mount this 10 mm rod end with M10x1.25 female thread to achieve precise alignment in your mechanical linkages.
Steel on bronze durability: The steel and bronze sliding contact combination ensures smooth articulation and dependable operation, even during temporary lubricant starvation.
Straightforward routine relubrication: You easily regrease the bearing directly via the housing fitting to reduce friction and significantly extend service life in demanding machinery.

In a nutshell

The right choise for

With the Skf sikac 10 M/VZ019 rod end, you ensure dependable, smooth articulation across moving mechanical systems. Featuring an M10x1.25 metric female thread and a precise 10 mm inner bore, this open bearing installs quickly onto linkages and cylinder rods. The steel-on-bronze sliding contact surface combination absorbs shocks effortlessly and maintains reliable operation, even under temporary lubricant starvation. Designed for routine maintenance, you can easily regrease the spherical plain bearing via the housing fitting. This prevents binding, reduces wear, and extends the overall service life of your machinery.

Product information FAQ

€44.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 10 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M10 x 1,25

Product description

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.

Suitable where lubricant starvation might occur
Simple and ready-to-mount
Easy to relubricate (sizes >= 6)

Documents

⤓ Technical data sheet PDF

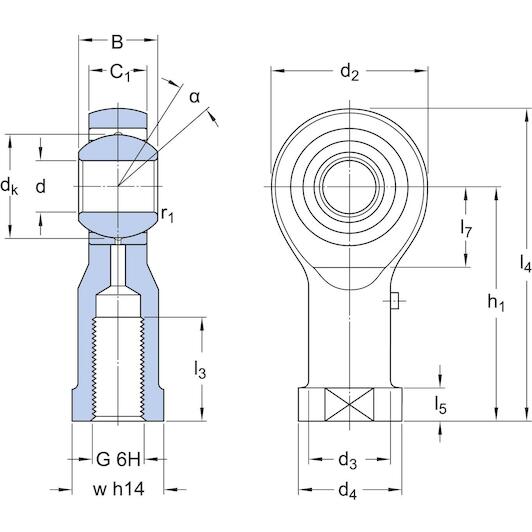

All Features

Inner diameter: 10 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M10 x 1,25
Basic static load rating: 12.2
Attachment feature, rod end shank: Right-hand female thread
Material, housing: Steel
Sliding contact surface combination: Steel/bronze
Housing length, total: 58
Maintenance: Relubrication required
Thread designation: M 10x1.25
Outside diameter, housing eye: 29
Bore diameter, bearing inner ring: 10
Sealing: Without
Material, inner ring: Bearing steel
Width, bearing inner ring: 14
Width, housing eye: 11.5
Basic dynamic load rating: 10
Centre height, housing (from end of shank): 43

Brand SKF
01390787
EAN 7316570857719
Supplier number SKF SIKAC 10 M/VZ019

Frequently asked questions about this product

Answered by specialists

What thread type and size does this rod end have?: This rod end features a metric female thread size of M10 with a 1.25 mm pitch (M10 x 1.25).
What is the bore diameter of this rod end?: The inner bore diameter is exactly 10 mm.
Is this rod end maintenance-free?: No, this rod end requires regular lubrication and maintenance.
What sliding contact surface combination is used?: The spherical plain bearing uses a steel-on-bronze sliding contact surface.
Does this bearing come with seals?: No, this rod end bearing is open and without seals.
