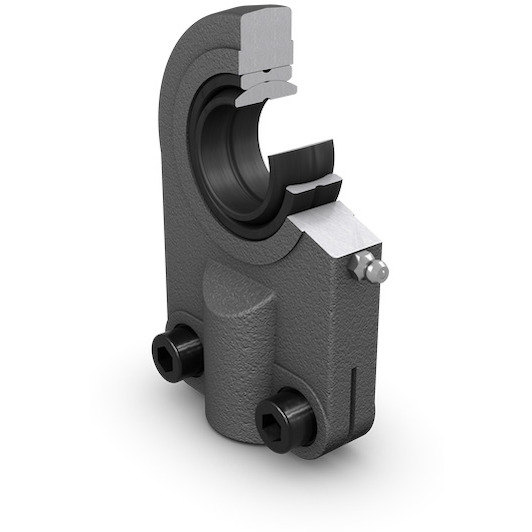

SKF SIJ 50 ES rod head, requires maintenance, female thread with clamping screws

Recommended Retail Price €1,427.47

706.60 tax incl.

€583.97 excl. VAT (incl. all environmental contributions)

SKF SIJ 50 ES rod head, requires maintenance, female thread with clamping screws

€706.60 Recommended Retail Price €1,427.47

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance, sizes 16 and larger can be relubricated via a lubrication hole or grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.

Easy to relubricate (sizes >= 16)
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount
Slotted shank with clamping screws
Suitable for hydraulic cylinders

Key features according to our expert

Inner diameter: 50 mm
Seal (bearing): Without seal
Maintenance free: Nein

Specifications / All features

Brand: SKF
02946309
EAN: 7316571151762
Supplier number: SKF SIJ 50 ES

Inner diameter: 50 mm
Seal (bearing): Without seal
Maintenance free: Nein
Attachment feature, rod end shank: Right-hand female thread and clamping screws
Material, housing: Steel
Sliding contact surface combination: Steel/steel, standard
Housing length, total: 192.5
Maintenance: Relubrication required
Thread designation: M 33x2
Material, outer ring: Bearing steel
Outside diameter, housing eye: 122
Bore diameter, bearing inner ring: 50
Material, inner ring: Bearing steel
Basic static load rating: 216
Width, bearing inner ring: 35
Sealing: Without
Width, housing eye: 30
Basic dynamic load rating: 156
Centre height, housing (from end of shank): 130
