SKF SI 8 C Rod head with female thread 8 mm, M 8

Supplier number: SKF SI 8 C | EAN 7316577002822

Recommended Retail Price €115.31

56.95 tax incl.

€47.07 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth articulation with Skf

Practical benefits

Completely maintenance free operation: The self-lubricating sliding contact surface ensures you never need relubrication during its service life.
High mechanical load capacity: The robust steel housing effortlessly absorbs heavy static and dynamic loads within your mechanical assemblies.
Quick and easy installation: You can easily fasten the rod end directly onto your linkage using the metric M8 female thread.

In a nutshell

The right choise for

With the Skf si 8 C rod end, you ensure smooth and reliable motion across your mechanical linkages and assemblies. Thanks to the self-lubricating steel and ptfe sintered bronze sliding contact surface, this rod end operates completely maintenance-free, saving you valuable time on relubrication. Its robust steel housing effortlessly absorbs heavy static and dynamic loads while compensating for angular misalignments between moving rods or shafts. Featuring a metric M8 female thread and an 8 mm bore diameter, you can mount this rod end quickly and securely onto cylinder connections or lever mechanisms.

Product information FAQ

€56.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 8 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M8

Product description

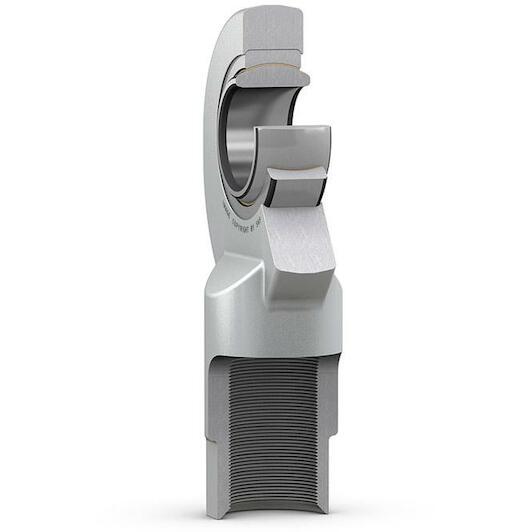

These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.

Long service life
Maintenance-free
Suitable for heavy, constant direction loads
Low coefficient of friction
Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

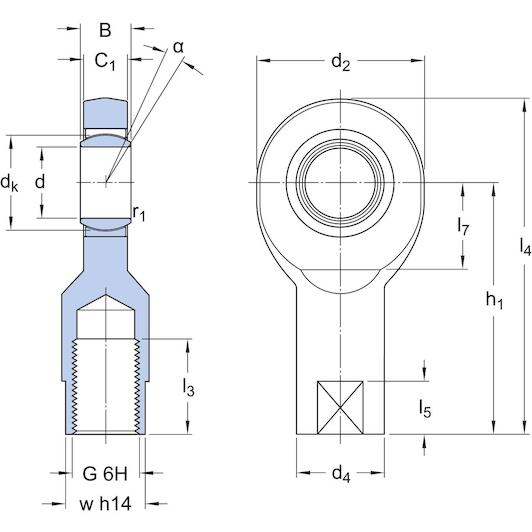

All Features

Inner diameter: 8 mm
Connection type: Internal thread
Thread type: Metric
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M8
Bore diameter, bearing inner ring: 8
Attachment feature, rod end shank: Right-hand female thread
Material, housing: Steel
Sliding contact surface combination: Steel/PTFE sintered bronze
Housing length, total: 50
Maintenance: Maintenance-free
Thread designation: M 8
Material, outer ring: Deep-drawing steel
Outside diameter, housing eye: 25
Sealing: Without
Basic static load rating: 12.9
Material, inner ring: Bearing steel
Width, bearing inner ring: 8
Width, housing eye: 6.5
Basic dynamic load rating: 5.85
Centre height, housing (from end of shank): 36

Brand SKF
01390203
EAN 7316577002822
Supplier number SKF SI 8 C

Frequently asked questions about this product

Answered by specialists

What thread specification does this SKF rod end have?: It features a metric M8 right-hand female thread.
What is the bore diameter of the bearing?: The inner ring bore has a diameter of 8 mm.
Does this rod end require lubrication?: No, the steel and PTFE sintered bronze sliding contact makes this rod end maintenance-free.
Does this rod end include seals?: No, this unit is supplied without integrated seals.
What applications is the SI 8 C best suited for?: It is designed for heavy, constant-direction loads and smooth oscillating motion in linkages.
