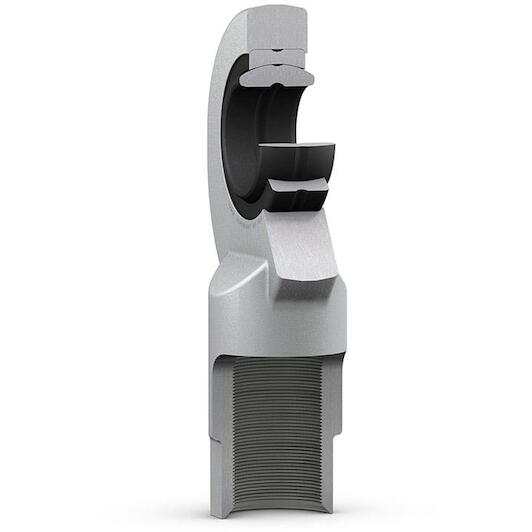

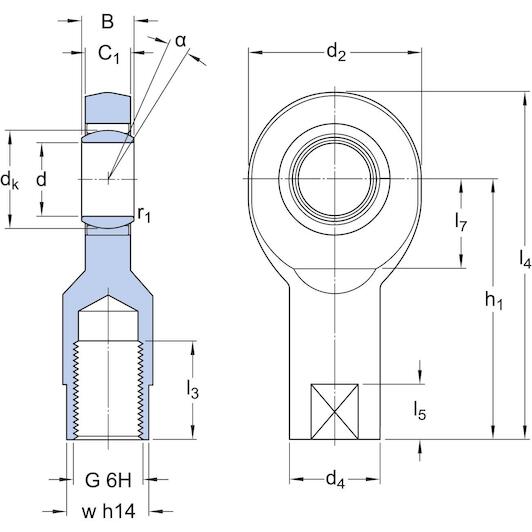

SKF SI 6 E Rod head with female thread 6 mm, M 6

Supplier number: SKF SI 6 E | EAN 7316577002815
Recommended Retail Price €86.48
42.80 tax incl.
€35.37 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL


€42.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 6 mm
  • Connection type: Internal thread
  • Thread type: Metric
  • Sealing (bearing): Without seals
  • Maintenance free: Nein
  • Connection size: M6

Product description

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can only be relubricated from the side. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Suitable for heavy static, alternating or impact loads
  • Simple and ready-to-mount

Documents

All Features

Inner diameter
6 mm
Connection type
Internal thread
Thread type
Metric
Sealing (bearing)
Without seals
Maintenance free
Nein
Connection size
M6
Bore diameter, bearing inner ring
6
Attachment feature, rod end shank
Right-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/steel, standard
Housing length, total
43
Maintenance
Relubrication required
Thread designation
M 6
Material, outer ring
Bearing steel
Outside diameter, housing eye
22
Sealing
Without
Basic static load rating
8.15
Material, inner ring
Bearing steel
Width, bearing inner ring
6
Width, housing eye
4.5
Basic dynamic load rating
3.4
Centre height, housing (from end of shank)
30
  • Brand SKF
  • EAN 7316577002815
  • Supplier number SKF SI 6 E
