SKF

SKF SI 40 TXE-2LS rod head with female thread 40 mm, M 42x3

Recommended Retail Price €811.40
401.60 tax incl.
€331.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

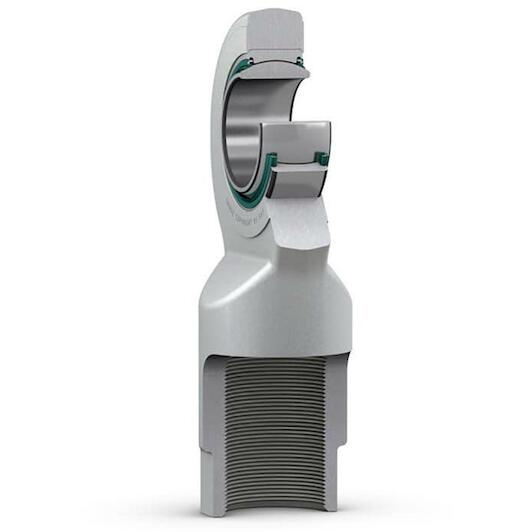

These SKF rod ends contain a spherical plain bearing with a steel/PTFE fabric sliding contact surface combination and a triple-lip, heavy duty contact seal on both sides. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread. Some sizes have different fitting dimensions (SAA series).

  • Long service life
  • Maintenance-free
  • Suitable for very heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 40 mm
  • Connection type: Inner thread
  • Thread type: Metric fine
  • Seal (bearing): Double-sided sealed
  • Maintenance free: Yes
  • Connection size: M42 x 3
Specifications / All features
  • Brand: SKF
  • EAN: 7316572082140
  • Supplier number: SKF SI 40 TXE-2LS
Inner diameter
40 mm
Connection type
Inner thread
Thread type
Metric fine
Seal (bearing)
Double-sided sealed
Maintenance free
Yes
Connection size
M42 x 3
Bore diameter, bearing inner ring
40
Attachment feature, rod end shank
Right-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE fabric
Housing length, total
194
Maintenance
Maintenance-free
Thread designation
M 42x3
Material, outer ring
Bearing steel
Sealing type
Triple-lip
Outside diameter, housing eye
94
Width, bearing inner ring
28
Basic static load rating
166
Material, inner ring
Bearing steel
Sealing
Seal on both sides
Width, housing eye
24
Basic dynamic load rating
280
Centre height, housing (from end of shank)
145
