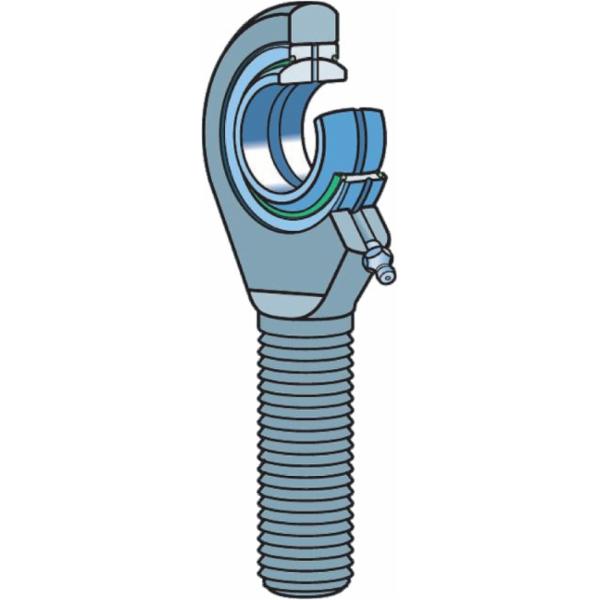

SKF SALA 80 ES-2RS rod head with male thread, left-hand thread 80 mm, M 64x4

Show more features

Inner diameter

80 mm

Connection type

Outer thread

Thread type

Metric fine - Left

Seal (bearing)

Double-sided sealed

Maintenance free

Nein

Connection size

M64 x 44

Maintenance

Relubrication required

Thread designation

M 64x4

Attachment feature, rod end shank

Left-hand male thread

Material, outer ring

Bearing steel

Centre height, housing (from end of shank)

270 mm

Sealing type

Double-lip

Outside diameter, housing eye

182 mm

Bore diameter, bearing inner ring

80 mm

Basic static load rating

585 kN

Material, housing

Steel

Sealing

Seal on both sides

Material, inner ring

Bearing steel

Width, bearing inner ring

55 mm

Sliding contact surface combination

Steel/steel, standard

Width, housing eye

48 mm

Basic dynamic load rating

400 kN

Housing length, total

364 mm
