What thread does this rod end feature?

It features a right-hand male metric fine thread sized M24 x 2.

What is the bore diameter of the bearing?

The bore diameter of the inner ring is exactly 25 mm.

Is the SKF SAKAC 25 M maintenance-free?

No, this rod end requires regular maintenance and relubrication.

What sliding contact surface combination is used?

It features a steel/bronze sliding contact surface combination.

Does this rod end have seals?

No, this rod end is supplied without seals.

SKF SAKAC 25 M Rod head with male thread 25 mm, M 24x2

Supplier number: SKF SAKAC 25 M | EAN 7316570859034

Recommended Retail Price €343.95

170.20 tax incl.

€140.66 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable Skf rod end for heavy-duty mechanical linkages

Practical benefits

Quick and rigid mounting: With the M24 x 2 male thread, you securely install the component into your industrial assembly.
Smooth motion under load: The steel and bronze sliding contact surface reliably handles pivoting movements and heavy mechanical stress.
Straightforward lubrication during service: You easily add fresh lubricant through the dedicated grease fitting to maintain consistent operating performance.

In a nutshell

The right choise for

With the Skf sakac 25 M rod end, you create a solid and reliable connection in demanding mechanical assemblies. Thanks to the M24 x 2 metric fine male thread, you install the component quickly and securely. The 25 mm bore diameter and the steel-on-bronze sliding contact surface smoothly accommodate pivoting movements and alternating dynamic loads. Designed without seals, this rod end requires maintenance and is easily relubricated via the grease fitting, keeping your linkages and cylinder connections running smoothly at all times.

Product information FAQ

€170.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Connection type: External thread
Thread type: Metric fine
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M24 x 2

Product description

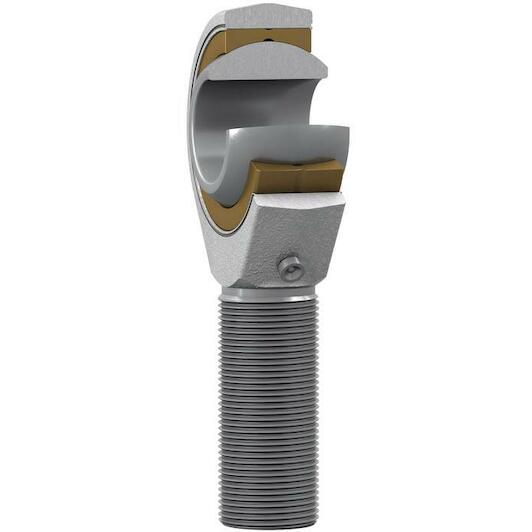

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The male thread is available with a left- (prefix SAL) or right-hand thread.

Suitable where lubricant starvation might occur
Simple and ready-to-mount
Easy to relubricate (sizes >= 6)

Documents

⤓ Technical data sheet PDF

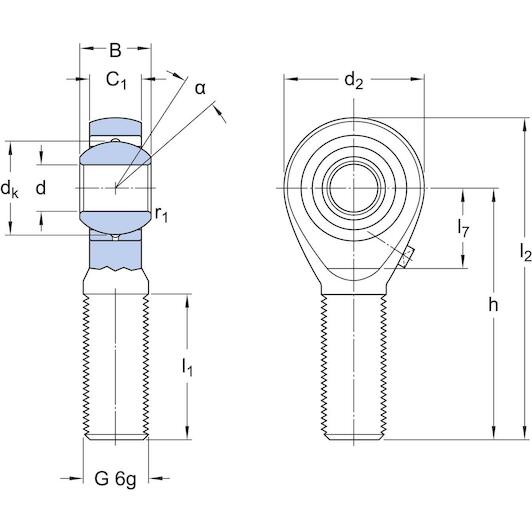

All Features

Inner diameter: 25 mm
Connection type: External thread
Thread type: Metric fine
Sealing (bearing): Without seals
Maintenance free: Nein
Connection size: M24 x 2
Basic static load rating: 46.5
Attachment feature, rod end shank: Right-hand male thread
Material, housing: Steel
Sliding contact surface combination: Steel/bronze
Housing length, total: 127
Maintenance: Relubrication required
Thread designation: M 24x2
Outside diameter, housing eye: 61
Bore diameter, bearing inner ring: 25
Sealing: Without
Material, inner ring: Bearing steel
Width, bearing inner ring: 31
Width, housing eye: 23
Basic dynamic load rating: 46.5
Centre height, housing (from end of shank): 94

Brand SKF
01390401
EAN 7316570859034
Supplier number SKF SAKAC 25 M

Frequently asked questions about this product

Answered by specialists

What thread does this rod end feature?: It features a right-hand male metric fine thread sized M24 x 2.
What is the bore diameter of the bearing?: The bore diameter of the inner ring is exactly 25 mm.
Is the SKF SAKAC 25 M maintenance-free?: No, this rod end requires regular maintenance and relubrication.
What sliding contact surface combination is used?: It features a steel/bronze sliding contact surface combination.
Does this rod end have seals?: No, this rod end is supplied without seals.
