SKF SAKAC 22 M Rod head with male thread 22 mm, M 22x1.5

Supplier number: SKF SAKAC 22 M | EAN 7316570994179
Recommended Retail Price €278.17
137.60 tax incl.
€113.72 excl. VAT (incl. all environmental contributions)
On order: delivered from 19/10/2026

  • Ordered before 20:00 - delivered as of 19/10/2026
  • Free shipping
  • Delivery by DHL


€137.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 22 mm
  • Connection type: External thread
  • Thread type: Metric
  • Sealing (bearing): Without seals
  • Maintenance free: Nein
  • Connection size: M22 x 1,5

Product description

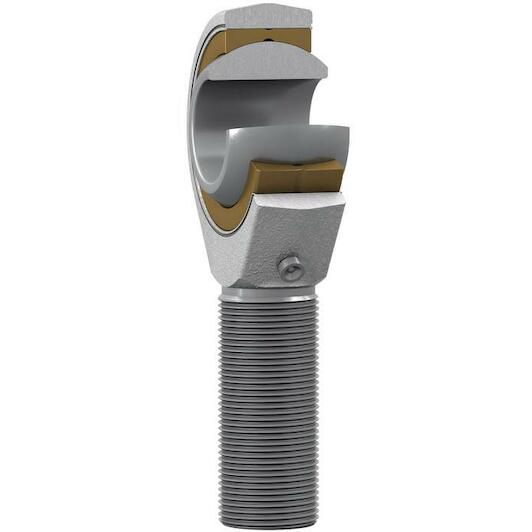

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The male thread is available with a left- (prefix SAL) or right-hand thread.

  • Suitable where lubricant starvation might occur
  • Simple and ready-to-mount
  • Easy to relubricate (sizes >= 6)

Documents

All Features

Inner diameter
22 mm
Connection type
External thread
Thread type
Metric
Sealing (bearing)
Without seals
Maintenance free
Nein
Connection size
M22 x 1,5
Basic static load rating
39
Attachment feature, rod end shank
Right-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/bronze
Housing length, total
114
Maintenance
Relubrication required
Thread designation
M 22x1.5
Outside diameter, housing eye
55
Bore diameter, bearing inner ring
22
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
28
Width, housing eye
21
Basic dynamic load rating
38
Centre height, housing (from end of shank)
84
  • Brand SKF
  • EAN 7316570994179
  • Supplier number SKF SAKAC 22 M
