SKF SA 40 TXE-2LS Rod head with male thread 40 mm, M 42x3

SKF
Supplier number: SKF SA 40 TXE-2LS | EAN 7316572082102
Recommended Retail Price €700.81
346.80 tax incl.
€286.61 excl. VAT (incl. all environmental contributions)
On order: delivered from 12/10/2026

  • Ordered before 20:00 - delivered as of 12/10/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€346.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 40 mm
  • Connection type: External thread
  • Thread type: Metric fine
  • Sealing (bearing): Sealed on both sides
  • Maintenance free: Yes
  • Connection size: M42 x 3

Product description

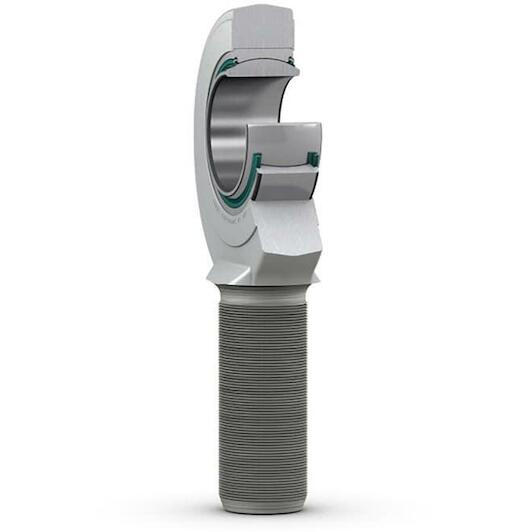

These SKF rod ends contain a spherical plain bearing with a steel/PTFE fabric sliding contact surface combination and a triple-lip, heavy duty contact seal on both sides. The bearing is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread. Some sizes have different fitting dimensions (SA(L)A series).

  • Long service life
  • Maintenance-free
  • Suitable for very heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
40 mm
Connection type
External thread
Thread type
Metric fine
Sealing (bearing)
Sealed on both sides
Maintenance free
Yes
Connection size
M42 x 3
Bore diameter, bearing inner ring
40
Attachment feature, rod end shank
Right-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE fabric
Housing length, total
194
Maintenance
Maintenance-free
Thread designation
M 42x3
Material, outer ring
Bearing steel
Sealing type
Triple-lip
Outside diameter, housing eye
94
Width, bearing inner ring
28
Basic static load rating
140
Material, inner ring
Bearing steel
Sealing
Seal on both sides
Width, housing eye
24
Basic dynamic load rating
280
Centre height, housing (from end of shank)
145
  • Brand SKF
  • EAN 7316572082102
  • Supplier number SKF SA 40 TXE-2LS
