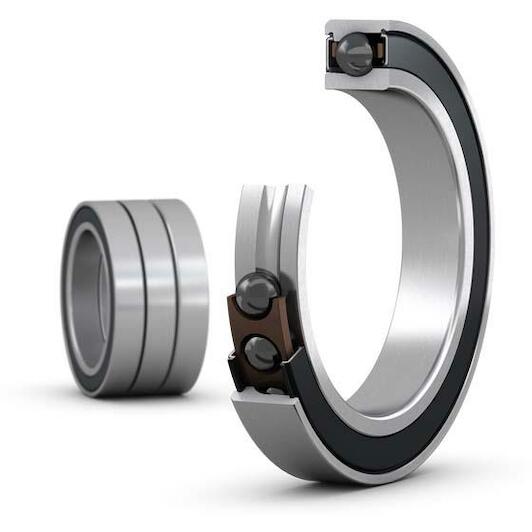

SKF S71914 FE/HCP4ATGA Single-row angular contact ball bearing set high speed E-design with seal matched 70 mm 3-piece

Recommended Retail Price €5,714.07

2,828.95 tax incl.

€2,337.98 excl. VAT (incl. all environmental contributions)

SKF S71914 FE/HCP4ATGA Single-row angular contact ball bearing set high speed E-design with seal matched 70 mm 3-piece

€2,828.95 Recommended Retail Price €5,714.07

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

These sets of three matched super-precision angular contact ball bearings are available as universally matchable bearings or as preconfigured arrangements. Sets arranged in back-to-back and tandem, or face-to-face and tandem, are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. Sets of three bearings paired in tandem need to be mounted against a single bearing, or another set of bearings in tandem, to achieve the desired preload. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.

Very high running accuracy
High axial and radial stiffness
High axial and radial load carrying capacity
Non-contact seals
Integral sealing prolongs bearing service life

Key features according to our expert

Inner diameter: 70 mm
Width: 48 mm
Number of rows: 3
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 100 mm

Specifications / All features

Brand: SKF
08123958
EAN: 07316579450492
Supplier number: SKF S71914 FE/HCP4ATGA

Inner diameter: 70 mm
Width: 48 mm
Number of rows: 3
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 100 mm
Matched arrangement: Universal matching
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 47.5
Cage: Non-metallic
Lubricant: Grease
Design: High-speed E
Sealing type: Non-contact
Ring type: One-piece inner and outer rings
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Number of bearings in matched set: 3
Sealing: Seal on both sides
Contact angle: 18
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 70
Basic dynamic load rating: 46.8
Coating: Without
Outside diameter: 100
Note: Refer to catalogue data or contact SKF for the attainable speeds
