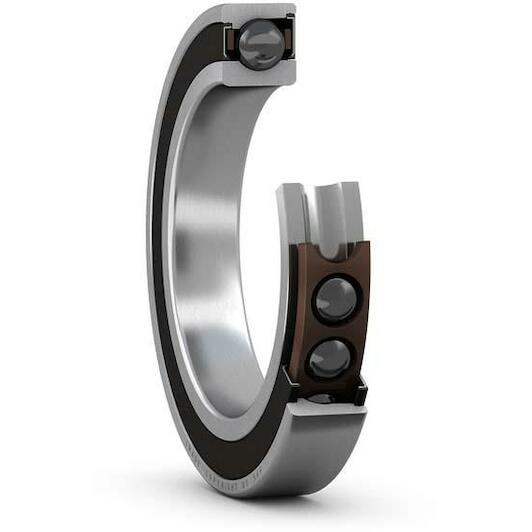

SKF S71902 ACDGA/HCP4A single-row angular contact ball bearing with seals high load carrying capacity, universally pairable

Recommended Retail Price €793.52

392.80 tax incl.

€324.63 excl. VAT (incl. all environmental contributions)

SKF S71902 ACDGA/HCP4A single-row angular contact ball bearing with seals high load carrying capacity, universally pairable

€392.80 Recommended Retail Price €793.52

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL

Product information

Product description

These super-precision, high-capacity, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.

Very high running accuracy
Very high load carrying capacity
Universally matchable
Non-contact seals
Integral sealing prolongs bearing service life

Key features according to our expert

Inner diameter: 15 mm
Width: 7 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 28 mm

Specifications / All features

Brand: SKF
08125964
EAN: 07316574080564
Supplier number: SKF S71902 ACDGA/HCP4A

Inner diameter: 15 mm
Width: 7 mm
Number of rows: 1
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 28 mm
Lubricant: Grease
Contact type: Normal contact (two-point contact)
Basic static load rating: 1.8
Matched arrangement: No
Material, bearing: Hybrid (ceramic balls)
Design: High-capacity D
Sealing type: Non-contact
Cage: Non-metallic
Ring type: One-piece inner and outer rings
Attainable speed for grease lubrication: 63000
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Tolerance class: P4A
Sealing: Seal on both sides
Contact angle: 25
Matched condition (axial clearance/ preload): Measuring load, class A
Bore diameter: 15
Basic dynamic load rating: 3.77
Coating: Without
Outside diameter: 28
Note: Refer to catalogue data or contact SKF for the attainable speeds
