SKF

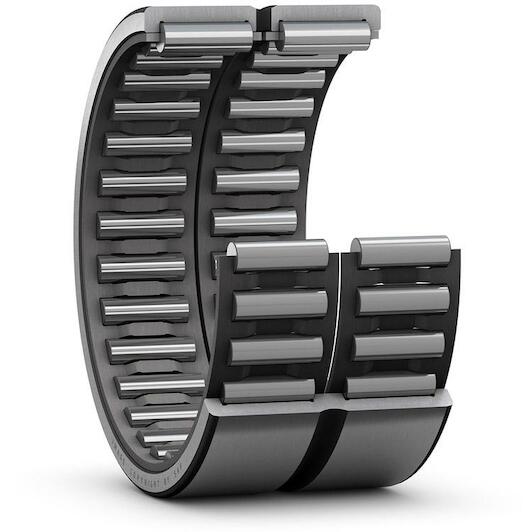

SKF RNA 6909 needle roller bearing without inner ring 52x68x40 mm

Recommended Retail Price €219.81
107.95 tax incl.
€89.21 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Double row needle roller bearings without an inner ring consist of an outer ring with two needle roller and cage assemblies. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes flanges to guide the roller and cage assemblies and has features to facilitate relubrication. The roller and cage assemblies and the outer ring form a non-separable unit.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
  • Enable a larger shaft diameter and a more rigid bearing arrangement
Key features according to our expert
  • Inner diameter: 52 mm
  • Width: 40 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 2
  • Material (cage): Sheet steel
  • Outer diameter: 68 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577117250
  • Supplier number: SKF RNA 6909
Inner diameter
52 mm
Width
40 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
2
Material (cage)
Sheet steel
Outer diameter
68 mm
Bore diameter of needle roller complement
52
Tolerance class
Normal
Aligning feature
Without
Basic static load rating
137
Skf performance class
SKF Explorer
Relubrication feature
With
Reference speed
7500
Sealing
Without
Lubricant
None
Cage
Sheet steel
Bearing part
Bearing without inner ring
Number of flanges, outer ring
3
Outer ring type
Machined (solid)
Limiting speed
8500
Basic dynamic load rating
81.5
Coating
Without
Outside diameter
68
Material, bearing
Bearing steel
