SKF

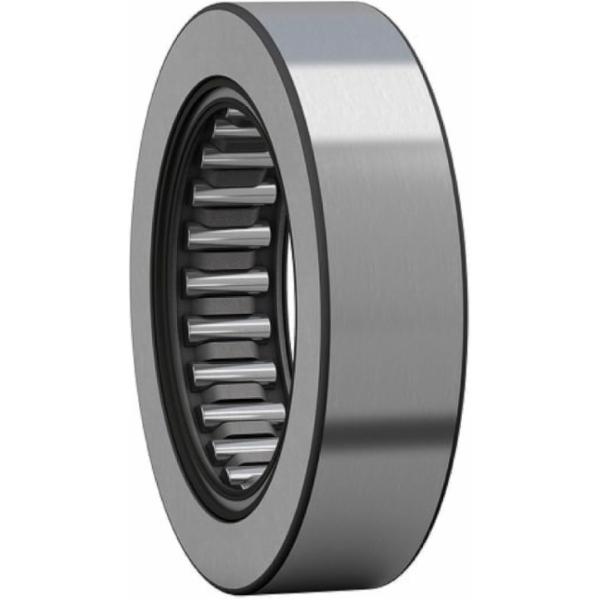

SKF RNA 2204.2RS support roller (Yoke-type idler) 47 x 25 x 17.8 mm

This article is not available

Product description:

  • Support roller without axial guide, with seal
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 17,8 mm
  • Outer diameter: 47 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571100296
  • Supplier number: SKF RNA 2204.2RS
Inner diameter
25 mm
Width
17,8 mm
Outer diameter
47 mm
Axial guidance of outer ring
Yes
Functional outside diameter
47 mm
Material, bearing
Bearing steel
Cage
With
Sealing type
Contact
Width, outer ring
17.8 mm
Lubricant
Grease
Relubrication feature
Without
Basic static load rating
18 kN
Radial internal clearance
Not applicable
Tolerance class
Other
Bearing part
Track roller without inner ring
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
17.8 mm
Outer ring profile
Crowned
Limiting speed
4,000 r/min
Bore diameter
25 mm
Number of rows
1
Basic dynamic load rating
16.1 kN
Coating
Without
Rolling elements
Needle rollers
