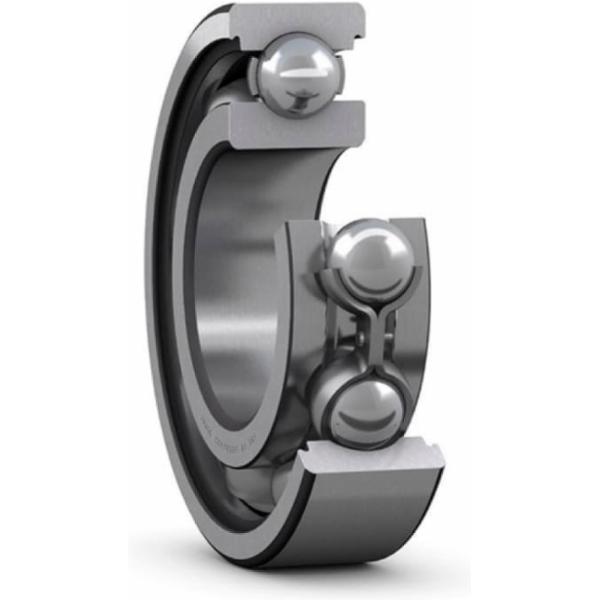

Product description: Deep groove ball bearings are particularly versatile They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds
Key features according to our expert
Inner diameter: 12,7 mm
Width: 9,525 mm
Number of rows: 1
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Radial clearance: CN (Normal)
Material (bearing): Steel
Material (cage): Brass (sheet)
Bore type: Cylindrical
High temperature: No
Outer diameter: 33,338 mm
Specifications / All features
Brand:
SKF
01988897
EAN:
7316577017567
Supplier number:
SKF RLS4 SKF
Inner diameter
12,7 mm
Width
9,525 mm
Number of rows
1
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
33,338 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
3.1 kN
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
45,000 r/min
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Without
Limiting speed
32,000 r/min
Bore diameter
12.7 mm
Basic dynamic load rating
7.28 kN
Outside diameter
33.338 mm
