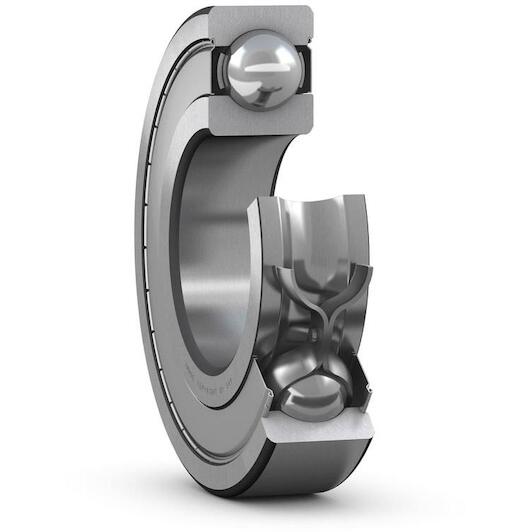

SKF RLS 4-2Z single-row groove ball bearing cylindrical 12.7x33338x9525 mm

SKF
Supplier number: SKF RLS 4-2Z | EAN 7316577017581
Recommended Retail Price €187.09
92.60 tax incl.
€76.53 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 1 products in stock.

  • Ordered before 20:00 - delivered tomorrow 15/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€92.60
In stock - tax incl.

Product information

Key features according to our expert

  • Inner diameter: 12,7 mm
  • Width: 9,525 mm
  • Number of rows: 1
  • Sealing (bearing): Sealed on both sides
  • Material (bearing seal): Metal
  • Radial clearance: CN (Normal)
  • Material (bearing): Steel
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • High temperature: No
  • Outer diameter: 33,338 mm

Product description:

  • Deep groove ball bearings are particularly versatile
  • They are simple in design, not removable, suitable for high to very high speeds and are very robust in operation, requiring little maintenance
  • Deep raceways and close contact between raceways and balls make deep groove ball bearings suitable not only for radial loads, but also for axial loads in both directions, even at high speeds

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
12,7 mm
Width
9,525 mm
Number of rows
1
Sealing (bearing)
Sealed on both sides
Material (bearing seal)
Metal
Radial clearance
CN (Normal)
Material (bearing)
Steel
Material (cage)
Brass (sheet)
Bore type
Cylindrical
High temperature
No
Outer diameter
33,338 mm
Matched arrangement
No
Tolerance class
Normal
Radial internal clearance
CN
Basic static load rating
3.1 kN
Material, bearing
Bearing steel
Relubrication feature
Without
Reference speed
45,000 r/min
Lubricant
Grease
Sealing type
Non-contact
Cage
Sheet metal
Locating feature, bearing outer ring
None
Filling slots
Without
Coating
Without
Sealing
Shield on both sides
Limiting speed
26,000 r/min
Bore diameter
12.7 mm
Basic dynamic load rating
7.28 kN
Outer diameter
33.338 mm
  • Brand SKF
  • EAN 7316577017581
  • Supplier number SKF RLS 4-2Z
