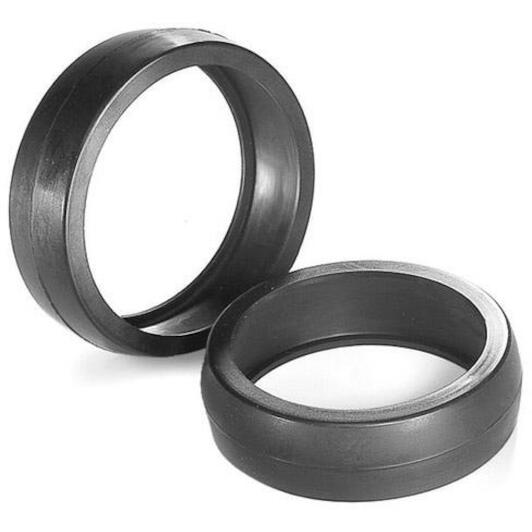

SKF RIS 205 rubber seat ring for insert bearing 62.3 x 46.4 x 20.5 mm

Supplier number: SKF RIS 205 | EAN 7316571170275

13.12 tax incl.

€10.84 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Ordered before 20:00 - delivered tomorrow 29/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable vibration damping with RIS 205

Practical benefits

Effective reduction of vibration: You significantly reduce unwanted vibrations and operational noise between the insert bearing and housing.
Compensation for minor misalignment: The flexible rubber construction absorbs small shaft expansions and accommodates angular misalignments smoothly.

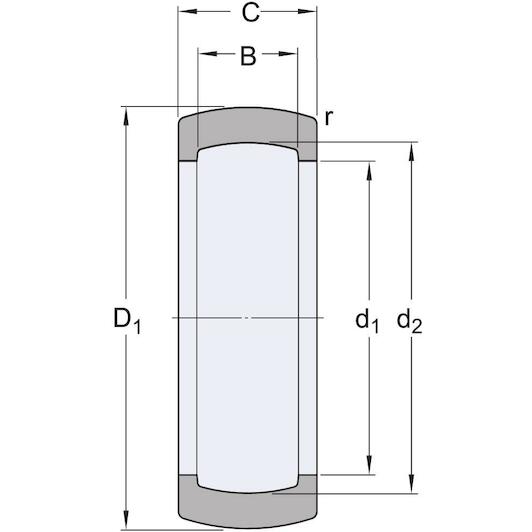

Precise and secure fit: With exact dimensions of 62.3 x 46.4 x 20.5 mm, you achieve firm, stable seating every time.

In a nutshell

The right choise for

With the Skf ris 205 rubber seating ring, you effectively dampen vibrations and resonance noise from insert bearings in pressed steel housings. Fitted between the outer ring of the bearing and the housing bore, it prevents direct metal-to-metal contact. The flexible rubber construction absorbs slight shaft expansions and accommodates minor misalignments smoothly to prevent premature wear. With exact dimensions of 62.3 x 46.4 x 20.5 mm, you achieve a precise, stable fit for dependable operation in your machinery and conveyor systems.

Product information FAQ

€13.12

In stock - tax incl.

Key features according to our expert

Inner diameter: 46,4 mm
Outer diameter: 62,3 mm
Width: 20,5 mm

Product description

Rubber seating rings in the RIS 2 series are primarily intended to cushion insert bearings in pressed steel pillow (plummer) block housings. Located between the bearing outer ring and housing bore, they dampen vibration and noise and enable the bearings to be displaced slightly in their housings and to accommodate minor shaft expansion or misalignment.

Cushion the insert bearing
Dampen vibrations and noise
Accommodate slight misalignment

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 46,4 mm
Outer diameter: 62,3 mm
Width: 20,5 mm
Outside diameter: 62.3
Material: Rubber
Bore diameter: 46.4
Accessory type: Rubber seating ring

Brand SKF
01194267
EAN 7316571170275
Supplier number SKF RIS 205

Frequently asked questions about this product

Answered by specialists

What is the purpose of the SKF RIS 205 rubber seating ring?: It cushions insert bearings in pressed steel housings, reduces vibration and noise, and accommodates minor misalignment or shaft expansion.
What are the exact dimensions of this seating ring?: The ring has an outer diameter of 62.3 mm, an inner diameter of 46.4 mm, and a width of 20.5 mm.
Where is this ring installed?: It is fitted between the outer ring of the insert bearing and the bore of the pressed steel housing.
Is this seating ring suitable for cast iron housings?: No, this rubber seating ring is specifically intended for pressed steel housings.
